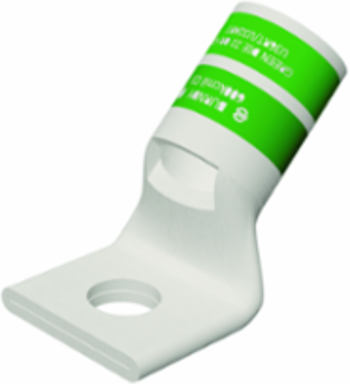

Burndy YA36L45 Non-Insulated Copper HYLUGTM Terminal, 600 kcmil, 5/8 Inch Stud, 45 Degree Bend
- MPN: YA36L45
- UPC: 781810128794
- PPN: BUR-25003486
CAD
$107.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUGTM ,Single hole /W/ insp window,600 kcmil,5/8" stud,22 or 472 index,Green,Tin Plated,45 Degree Bend
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - D inch
- 1.33 in
- Dimension - Hole Size mm
- 18 mm
- Dimension - Length Overall inch
- 3.49 in
- Dimension - Outside Diameter inch
- 1.19 in
- Dimension - Strip Length inch
- 1-3/4
- Dimension - Z inch
- 0.67 in
Dimension - B Length inch1.38 in
Dimension - Bolt Size fraction5/8
Dimension - Height inch2.48 in
Dimension - L Length Overall mm89 mm
Dimension - N inch0.66 in
Dimension - Pad Width inch1.74 in
Dimension - Stud Size inch5/8
Physical Attribute - Tongue Angle45 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 600 kcmil
Conductor - Copper Str Size600 kcmil
Conductor - MaterialCopper
General
- Color Code
- Green
- Die Index
- 22;472
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810128794
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 5
