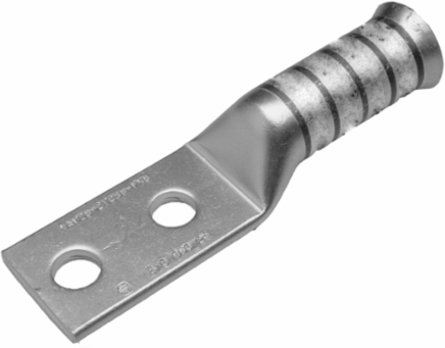

Burndy YAV262NFXB HYLUGTM Long Barrel Terminal Connector, 2/0 AWG, 1/2 Inch Stud, 35 kV
- MPN: YAV262NFXB
- UPC: 781810065556
- PPN: BUR-518677
CAD
$46.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond(Telecom), 2 Hole/W/O/InspWindow, 2/0 Str,2/0(325/#24)DLO,2/0 AWG Code, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Lng bbl, Belled End.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.63 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.15 in
- Dimension - Outside Diameter inch
- 0.63 in
- Dimension - Strip Length inch
- 1.63 in
- Dimension - Z inch
- 0.64 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm131 mm
Dimension - N inch0.62 in
Dimension - Pad Width inch0.93 in
Dimension - Stud Size inch1/2 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2/0 (375/#24) DLO
- Conductor - Copper Flex H Size
- 2/0 AWG
- Conductor - Copper Flex K Size
- 2/0 AWG
- Conductor - Copper Str Size
- 2/0 AWG
Conductor - Copper Flex G Size2/0 AWG
Conductor - Copper Flex I Size2/0 AWG
Conductor - Copper Flex M Size2/0 AWG
Conductor - MaterialCopper
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Belled
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810065556
Color CodeBlack
Die Index13
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
PlatedYes
Sub BrandHYLUG
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100655566
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
