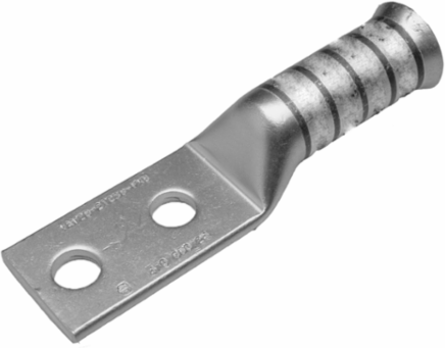

Burndy YAV2C2TC14FXB Copper Terminal, 2 Hole, Long Barrel, 2 AWG, 35 kV, 1/4 Stud
- MPN: YAV2C2TC14FXB
- UPC: 781810171028
- PPN: BUR-25014451
CAD
$25.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, 2 Hole/W/O/InspWindow, #2 Str, 3(125/#24)-2(150/#24)DLO, #2 AWG Code, 600 V-35 kV, 1/4" Stud, 0.62" Spacing, Lng bbl, Belled End
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - L Length Overall mm
- 76 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.68 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.35 in
Dimension - Hole Size inch0.27 in
Dimension - Inside Diameter inch0.36 in
Dimension - Length Overall inch3.00 in
Dimension - Outside Diameter inch0.46 in
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.34 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2 (150/#24) DLO
- Conductor - Copper Flex H Size
- 2 AWG
- Conductor - Copper Flex K Size
- 2 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size2 AWG
Conductor - Copper Flex I Size2 AWG
Conductor - Copper Flex M Size2 AWG
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810171028
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818101710288
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
