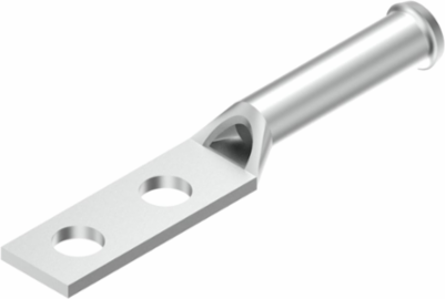

Burndy YAV4C2NFXB Tin Plated Compression Terminal Connector, 4 AWG, 1/2 Inch Stud, 0.83 Inch Pad Width
- MPN: YAV4C2NFXB
- UPC: 781810297858
- PPN: BUR-10009054
CAD
$33.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel flex conductor, 2 holes/W/O/ insp window, #4 weld(91/24-105/24), #4 AWG,1/2" stud, Tin plated, Grey, 8 index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 1.22 in |
|---|---|
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 4.56 in |
| Dimension - Outside Diameter inch | 0.38 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Hole Size inch | 0.56 in |
|---|---|
| Dimension - L Length Overall mm | 116 mm |
| Dimension - N inch | 0.62 in |
| Dimension - P inch | 1.46 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Z inch | 0.64 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 5 (91/#24) DLO;4 (105/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 4 AWG |
| Conductor - Copper Flex K Size | 4 AWG |
| Conductor - Copper Flex M Size Range | 4 AWG |
| Conductor - Copper Str Size | 4 AWG |
| Conductor - CopperWeld Solid Size Range | 4 AWG |
| Conductor - CopperWeld Str Size Range | 4 A AWG-4 P AWG |
| Conductor - Copper Flex G Size | 4 AWG |
|---|---|
| Conductor - Copper Flex I Size | 4 AWG |
| Conductor - Copper Flex M Size | 4 AWG |
| Conductor - Copper Solid Size | 4 AWG |
| Conductor - CopperWeld C Solid Size | 4 AWG |
| Conductor - CopperWeld Str Size | 4 A AWG;4 D AWG;4 N AWG;4 P AWG |
| Conductor - Material | Copper |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Die Index | 8 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810297858 |
| Color Code | Gray |
|---|---|
| Construction Material - Main | Copper |
| Feature - Barrel Style | Belled |
| Material | Copper |
| Plated | Y |
| Sub Brand | TERMINALS, HYLUG |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818102978588 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
