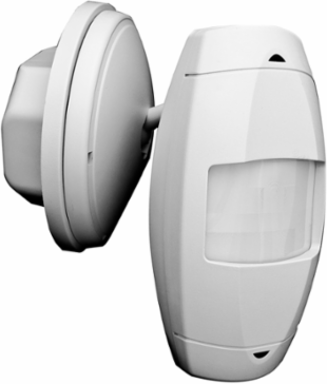

Leviton ODWLR-IDW Occupancy Sensor Wall Mount, PIR, 100' Coverage, 15A, 120-277 VAC, Off-white
- MPN: ODWLR-IDW
- UPC: 078477540053
- PPN: LEV-ODWLR-IDW
CAD
$304.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Occupancy Sensor OSWLR-I0W lighting control kitted with the Power Base OPB15 to complete a self contained line voltage sensor. (Occ Sensor: 24VDC, 10' Wall Mounted, Range to 100', PIR, (Power Base: Line Voltage to Low Voltage Power Base Adaptor. 15A, 120-230-277VAC), CEC Title 20/24 compliant. Color: Off-white
Features
- Leviton’s ODC and ODW series sensors provide a full line of self contained PIR, Ultrasonic (U/S) and Multitechnology (M/T) occupancy sensors . The sensor’s main function is to turn the lights ON or maintain the lights ON while movement is detected within the sensor’s field-of-view, and turn the lights OFF when the space is vacant. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Color | White |
|---|---|
| Mounting Type | Wall Mount |
| Sensor Technology | Passive Infrared |
| Coverage (Sq.Ft.) | 100FT x 14FT @ 10FT Height |
|---|---|
| Product Line | ODWLR |
Electrical Specifications
| Frequency | 50/60Hz |
|---|
| Voltage | 120-277 VAC |
|---|
Mechanical Specifications
| Neutral Wire Connection | Required |
|---|
