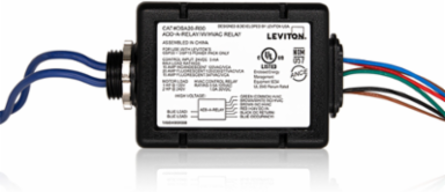

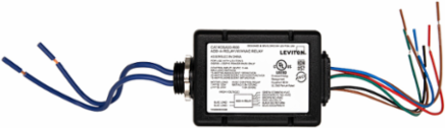

Leviton OSA20-R00 Occupancy Sensor Power Pack, 15 Amp, 120/277VAC, HVAC Relay
- MPN: OSA20-R00
- UPC: 078477166512
- PPN: LEV-OSA20-R00
CAD
$49.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15A INC 20A FL 120/277VAC 15A FL 347VAC, Add-A-Relay for Occupancy Sensor w/ HVAC Relay 0.5A 125VAC 1.0A 30VDC, Title 24 Compliant, ASHRAE 90.1 Compliant
Features
- Companion relay for Power Pack provides additional load capacity
- Switches incandescent, magnetic and electronic fluorescent, magnetic and electronic low-voltage and motor loads
- Compact size and light weight allows easy mounting through knockout in junction box (from either inside or outside junction box) with a simple twist-on nut. Unit is also approved for mounting in ballast channel cavity.
- Single or multiple luminaire control from one or more sensors
- HVAC Relay for signaling energy management systems and controls
- Zero crossing circuitry provides increased durability
- CUL/US, FCC and NOM Certified
- Meets ASHRAE Standard 90.1 requirements
- Backed by a Limited 5-Year warranty
- Containing both a 24VDC supply and a 20A line voltage relay for most models, the Leviton compact power pack provides low voltage power and line voltage control for Leviton Occupancy Sensors . Versions include Auto-ON and Manual-ON inputs for occupancy sensors, Hold-ON and Hold-OFF capabilities, and a local input for momentary or maintained dry contact switches. The OSP Power Pack Series is also used to supply power to the OSA Add-A-Relay model. The Power Pack conveniently mounts in a knockout hole of a standard junction box. The unit can be placed inside or outside the junction box with a simple twist-on nut. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Title 24 Compliant
- Yes
Mechanical Specifications
- Neutral Wire Connection
- Required
Relay TypeHVAC Relay
Product Features
- Color
- Black
- Sensor Type
- Power Pack
Product LineOSA20
Electrical Specifications
- Frequency
- 50/60Hz
Voltage120/230/277 VAC
