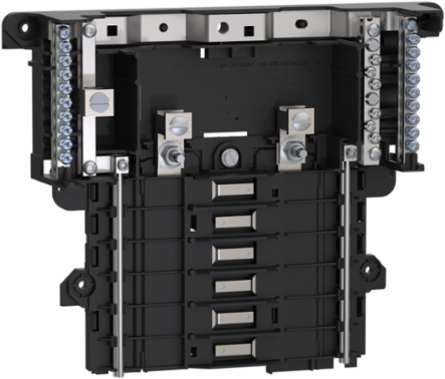

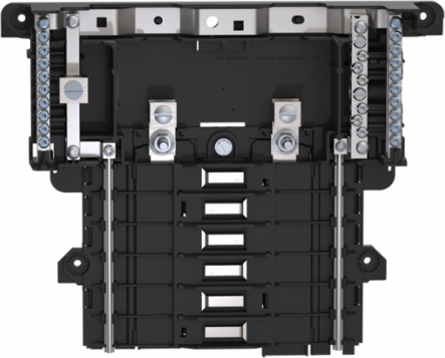

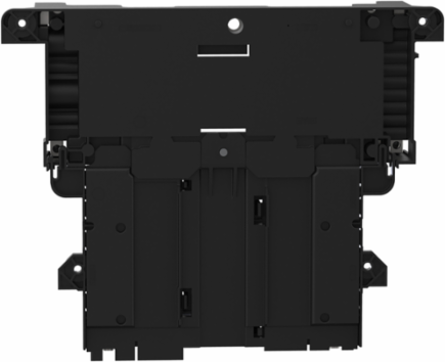

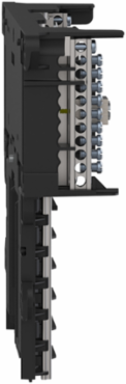

Square D QON112L125PI QO Load Center Interior 12 Spaces, 125A, 1 Phase
- MPN: QON112L125PI
- UPC: 785901453529
- PPN: SCH-QON112L125PI
CAD
$264.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 125A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 12 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a neutral bus bar. The QON mounting base is UL component recognized.
Features
- This Square D by Schneider Electric QON series open mounting base is specifically engineered for original equipment manufacturers (OEMs), panel builders, and machinery designers. It provides an un-enclosed, factory-spec interior chassis that allows technical builders to integrate a high-performance 12-space circuit breaker distribution block directly into custom control cabinets, specialized industrial machinery, or bespoke power distribution assemblies.
- Rated for a maximum current of 125 A, this mounting base operates on a standard 120/240 V AC, single-phase, 3-wire electrical system. Equipped with factory-installed main lugs and boasting a maximum short-circuit current rating (SCCR) of 10 kA, it serves as a highly robust, code-compliant core for sub-panel configurations and localized branch circuit distribution.
- This OEM distribution interior is precision-machined exclusively for Square D QO plug-on circuit breakers, including standard premium QO branch breakers, ground fault circuit interrupters (GFIs), and surge protective devices (SPDs). The industry-preferred QO mounting rails guarantee a rock-solid mechanical connection and reliable electrical contact, eliminating the risk of loose components or erratic contact resistance under industrial vibration.
- The rugged main lug terminals are designed to confidently clamp onto a broad wire range from AWG 6 up to 2/0 copper or aluminum conductors. This versatile mechanical lug profile gives electrical engineers and panel assemblers the freedom to run heavy-gauge feeder lines easily, maintaining low-resistance electrical pathways that resist thermal expansion and localized overheating over years of continuous operation.
- Featuring a highly compact, low-profile footprint measuring 8.6 inches (218 mm) in height, 10.6 inches (270 mm) in width, and 2.3 inches (58 mm) in depth, this lightweight 1.5-pound interior maximizes spatial efficiency. Its space-saving design permits easy integration into highly restricted custom equipment enclosures while maintaining all necessary internal wire-bending clearances and electrical creepage distances.
Documentation & Downloads
Specifications
Additional
- Ampere Rating
- 125 A
- Phase
- 1
- Temperature Range
- -5 °C to 40 °C
- Wire Size
- AWG 6 to AWG 2/0 aluminum/copper
- Height
- 8.58 in
- Depth
- 2.28 in
- ROHS Compliance
- Compliant
- Country of Origin
- United States
Voltage120/240 V AC
Short Circuit Current10 kA
Number Of Spaces12
Wiring3 wires
Width10.63 in
Materialmounting base
Mercury FreeYes
