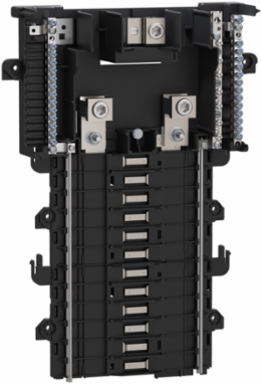

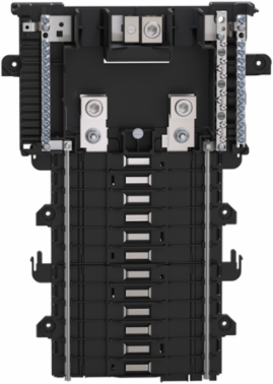

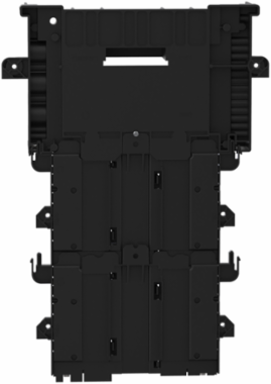

Square D QON124L200PI QO Load Center Interior, 200A, 24 Spaces, PoN, 1 Phase, 120/240V AC
Square D QON124L200PI QO Load Center Interior, 200A, 24 Spaces, PoN, 1 Phase, 120/240V AC
- MPN: QON124L200PI
- UPC: 785901452454
- PPN: SCH-QON124L200PI
- UNSPSC: 39121101
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$504.37/ EA
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a neutral bus bar. The QON mounting base is UL component recognized.
Features
- Mounting base for QO Load centers
- 1 phase system with 24 spaces
- 200A main lugs with plug on neutral
- Neutral busbar
- Designed to satisfy individual requirements
- Compatible with Square D QO Plug-on Neutral Whole Home SPD
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Specifications
- Amperage
- 200 A
- Phase
- 1 Phase
- Operating Temperature Range
- -5 B0C to 40 B0C
- Height
- 15.12 in
- Depth
- 2.6 in
- Load Center Type
- PoN Convertible Mains (lugs)
- Country of Origin
- United States
Voltage120/240 V AC
Short Circuit Current10 kA
Number of Spaces24
Width10.63 in
MaterialAluminium/Copper (AWG 4-250 kcmil compatible)
RoHS ComplianceEU and China Compliant
