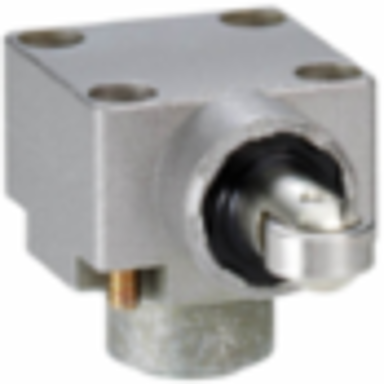

Telemecanique Sensors ZCKE64 Limit switch head, Limit switches XC Standard, ZCKE, metal side plunger with horizontal roller
Telemecanique Sensors ZCKE64 Limit switch head, Limit switches XC Standard, ZCKE, metal side plunger with horizontal roller
- MPN: ZCKE64
- PPN: TES-ZCKE64
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.97/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head supports positive opening operation. It provides switch actuation by 30° cam. The spring return horizontal roller side plunger supports lateral approach in 2 directions. This linear switch head is made of metal. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ limit switches. It is associated with ZCKJD37, ZCKJ7H29, ZCKJD35, ZCKJ1H7, ZCKJD31H29, ZCKJD39H7, ZCKJD35H29, ZCKJ21H7, ZCKJ9H7, ZCKJ9, ZCKJ11, ZCKJ6, ZCKJD37H7, ZCKJ5H29, ZCKJ11H7, ZCKJD35H7 and ZCKJD31H7 bodies. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Switch Actuation
- by 30° cam
- Head Material
- metal
Positive Openingwith
Specifications
- Type Of Approach
- lateral approach, 2 directions
- Movement Of Operating Head
- linear
- Type Of Operator
- side roller plunger spring return metal with horizontal roller)
- Associated Body
- ZCKJD37 || ZCKJ7H29 || ZCKJD35 || ZCKJ1H7 || ZCKJD31H29 || ZCKJD39H7 || ZCKJD35H29 || ZCKJ21H7 || ZCKJ9H7 || ZCKJ9 || ZCKJ11 || ZCKJ6 || ZCKJD37H7 || ZCKJ5H29 || ZCKJ11H7 || ZCKJD35H7 || ZCKJ21 || ZCKJD31H7 || ZCKJ1 || ZCKJ11H29 || ZCKJ2H7 || ZCKJ7 || ZCKJ9H29 || ZCKJ8 || ZCKJ6H29 || ZCKJD39 || ZCKJ5H7 || ZCKJ2 || ZCKJD37H29 || ZCKJ8H29 || ZCKJD31 || ZCKJ2H29 || ZCKJ21H29 || ZCKJ7H7 || ZCKJD39H29 || ZCKJ1H29 || ZCKJ6H7 || ZCKJ8H7 || ZCKJ5
- Device Short Name
- ZCKE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKJ
Head Typeplunger head
