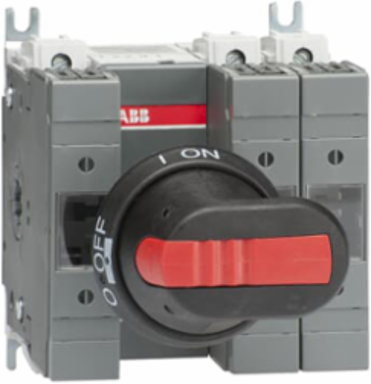

ABB 1SCA115331R1001 OS32GB12P SWITCH FUSE

MPN: 1SCA115331R1001
PPN: ABB-1SCA115331R1001

$600.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),British Standard,A2-A3,Handle and shaft included,

Specifications

Dimensions

Product Net Width	112 mm
Product Net Depth / Length	109 mm

Product Net Height	125 mm
Product Net Weight	1.18 kg2.6 lb

Technical

Rated Operational Current AC-21A (Ie)	(500 V) 32 A(690 V) 32 A
Rated Operational Current AC-23A (Ie)	(500 V) 32 A(690 V) 32 A
Conventional Free-air Thermal Current (Ith)	Θ = 40 °C 32 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Operational Voltage	Main Circuit 690 V AC
Rated Conditional Short-Circuit Current (Inc)	(690 V) 80 kA
Pollution Degree	3
Switches Operating Mechanism	12 (Between the Poles)
Fuse Size	A2-A3
Operating Mode	Front Operated
Mounting Type	Base mounting
Cable Cross-Section	2.5 ... 25 mm²
Tightening Torque	3 N·m4 N·m

Rated Operational Current AC-22A (Ie)	(500 V) 32 A(690 V) 32 A
Rated Operational Power AC-23A (Pe)	(220 ... 240 V) 7.5 kW(400 V) 15 kW(415 V) 15 kW(500 V) 18.5 kW(690 V) 22 kW
Conventional Thermal Current (Ithe)	Fully Enclosed 32 A
Rated Insulation Voltage (Ui)	1000 V
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 2.5 kiloampere rms
Power Loss	at Rated Operating Conditions per Pole 7.5 W
Handle Type	Pistol handle and shaft included
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Fuse System	British Standard
Standards	IEC 60947-3
Number of Poles	3
Terminal Type	Screw Terminals
Rated Current (In)	Main Circuit 32 A

Classifications

Object Classification Code	Q
eClass	V11.1 : 27371401

ETIM 9	EC001040 - Fuse switch disconnector
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

Environmental

RoHS Status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Circular Value

Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
RoHS Information	1SCC011020D0201

REACH Declaration	1SCC011021D0201

Technical UL/CSA

Tightening Torque	3 N·m4 N·m

Ordering

Minimum Order Quantity	1 piece
Country of Origin	Finland (FI)

Customs Tariff Number	85365080
