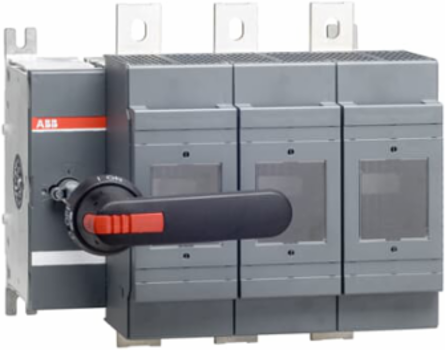

ABB 1SCA022825R2830 OS630D03P SWITCH FUSE

MPN: 1SCA022825R2830
PPN: ABB-1SCA022825R2830
UNSPSC: 39122233

$2577.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Switch Fuses,Front Operated,3-pole,03 (Left Side),DIN,3,Handle and shaft included,

Specifications

Dimensions

Product Net Width	343 mm
Product Net Depth / Length	233 mm

Product Net Height	306 mm
Product Net Weight	13.5 kg

Technical

Rated Operational Current AC-21A (Ie)	(500 V) 630 A(690 V) 630 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
Conventional Free-air Thermal Current (Ith)	Θ = 40 °C 630 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Operational Voltage	Main Circuit 690 V AC
Rated Conditional Short-Circuit Current (Inc)	(690 V) 80 kA
Pollution Degree	3
Switches Operating Mechanism	03 (Left Side)
Fuse Size	NH3
Operating Mode	Front Operated
Mounting Type	Base mounting
Terminal Type	Lug terminals
Tightening Torque	50 ... 75 N·m

Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
Rated Operational Power AC-23A (Pe)	(220 ... 240 V) 200 kW(400 V) 355 kW(415 V) 355 kW(500 V) 450 kW(690 V) 630 kW
Conventional Thermal Current (Ithe)	Fully Enclosed 570 A
Rated Insulation Voltage (Ui)	1000 V
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 18 kiloampere rms
Power Loss	at Rated Operating Conditions per Pole 60 W
Handle Type	Pistol handle and shaft included
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Fuse System	DIN
Standards	IEC 60947-3
Number of Poles	3
Terminal Width	39 mm
Rated Current (In)	Main Circuit 630 A

Classifications

Object Classification Code	Q
IDEA Granular Category Code (IGCC)	5291 >> Fuse switch disconnector
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)	3172091

ETIM 9	EC001040 - Fuse switch disconnector
eClass	V11.1 : 27371401
E-Number (Finland)	3661504

Environmental

RoHS Status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Circular Value

Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
RoHS Information	1SCC011020D0201

REACH Declaration	1SCC011021D0201

Technical UL/CSA

Tightening Torque	50 ... 75 N·m

Ordering

Minimum Order Quantity	1 piece
Country of Origin	Finland (FI)

Customs Tariff Number	85365080
