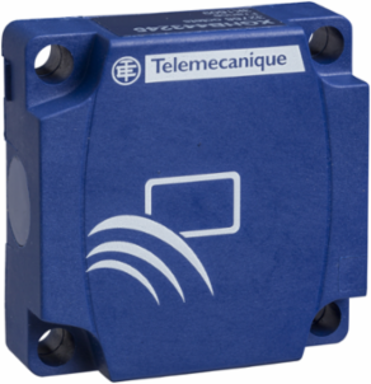

Telemecanique Sensors XGHB444345 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, flat form 40 x 40 x 15, 3408 Bytes
- MPN: XGHB444345
- PPN: TES-XGHB444345
- UNSPSC: 39122230
CAD
$129.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, flat form 40 x 40 x 15, 3408 Bytes
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Radio frequency identification XG |
|---|---|
| Outer Dimension | 40 x 40 x 15 mm |
| Fixing Mode | by screws || by clips |
| Read Time | 9.25 + 0.375 x (number of 16-bit words) ms |
| Design | flat form 40 x 40 x 15 |
| [Sn] Nominal Sensing Distance | 33 mm XGCS49 || 48 mm XGCS89 || 48 mm XGCS85 |
| Ip Degree Of Protection | IP68 |
| Station Name | XGCS |
|---|---|
| Memory Capacity | 3.408 kB |
| Rfid Frequency | 13.56 MHz |
| Product Or Component Type | electronic tag |
| Write Time | 13 + 0.8 x (number of 16-bit words) ms |
| Quantity Per Set | set of 1 |
| Rfid Electronic Tag Name | XGHB |
Complementary
| Number Of Read Cycles | unlimited |
|---|---|
| Material | PBT (polybutylene terephthalate) |
| Mounting Location | possible on metal support |
| Number Of Write Cycles | 100000 -25-70 °C || 2500000 30-30 °C |
| Memory Type | EEPROM |
| Data Retention Time | 10 year(s) |
|---|---|
| Net Weight | 0.031 kg |
| Memory Operation | read/write |
| Passing Speed Of Object | 3.1 m/s XGCS49 read a serial number) || 1.4 m/s XGCS49 read a word) || 2.7 m/s XGCS89 read a word) || 2.7 m/s XGCS85 read a word) || 1.2 m/s XGCS49 read or write 10 words) || 4.8 m/s XGCS89 read a serial number) || 1.8 m/s XGCS89 read or write 10 words) || 4.8 m/s XGCS85 read a serial number) || 1.8 m/s XGCS85 read or write 10 words) |
Environment
| Ik Degree Of Protection | IK02 EN 50102 |
|---|---|
| Vibration Resistance | 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | ISO 14443 |
|---|---|
| Shock Resistance | 30 gn 11 ms EN 60068-2-27 |
| Ambient Air Temperature For Storage | -40-85 °C |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP060407EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111218EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
