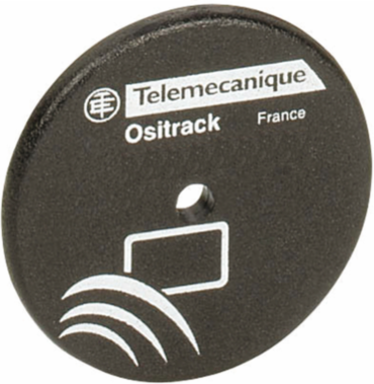

Telemecanique Sensors XGHB520246 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, disc Ø 50 x 3, 112 Bytes
Telemecanique Sensors XGHB520246 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, disc Ø 50 x 3, 112 Bytes
- MPN: XGHB520246
- PPN: TES-XGHB520246
- UNSPSC: 43211710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$36.88/ EA
Description
This electronic tag is part of the XG range, an offer of RFID readers and tags. RFID, Radio Frequency Identification, refers to radio frequency identification systems, 13.56 MHz. This tag, with EEPROM type memory, for read and write operations, has a memory capacity of 112bytes. This system makes it possible to perform traceability, object identification or tracking, and access control functions. Depending o the antenna and the possible addition of a field expander, the sensing distance of this tag is 70mm, 100mm or 150mm Its degree of protection is IP68. It is a disk tag, with a PPA case, diameter 50mm. It is 3mm thick. This smart antenna is suitable for many applications. Logistics, tracking and sorting of baggage, traceability in the food processing industry, flexible assembly lines in the automotive sector, automatic toll booths and access control. It complies with the ISO 15693 standard. Field expanders, to be ordered separately, are available to enlarge the dialogue field of the smart antennas This tag is sold in lots of 10. It is fixed by one screw. It must not be mounted on a metal support. No specific programming is required, the tag automatically adapts to the protocol and speed of the network used (EtherNet/IP, Modbus TCP/IP, Modbus RTU, Uni-Telway, PROFIBUS-DP).
Specifications
Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Outer Dimension
- Ø 50 x 3 mm
- Fixing Mode
- by screws
- Read Time
- 12 + 0.825 x (number of 16-bit words) ms
- Design
- disc
- [Sn] Nominal Sensing Distance
- 100 mm XGCS89 || 150 mm XGCS49 + field expander XGFEC2525 || 70 mm XGCS49 || 70 mm XGCS49 + field expander XGFEC540 || 100 mm XGCS85
- Ip Degree Of Protection
- IP68
Station NameXGCS
Memory Capacity112 B
Rfid Frequency13.56 MHz
Product Or Component Typeelectronic tag
Write Time12 + 5.6 x (number of 16-bit words) ms
Quantity Per Setset of 10
Rfid Electronic Tag NameXGHB
Environment
- Ik Degree Of Protection
- IK02 EN 50102
- Vibration Resistance
- 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
- Ambient Air Temperature For Operation
- 85-140 °C 10 min not during transmission || -25-85 °C
StandardsISO 15693
Shock Resistance30 gn 11 ms EN 60068-2-27
Ambient Air Temperature For Storage-40-90 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Complementary
- Number Of Read Cycles
- unlimited
- Material
- PPA (polyphthalamide)
- Memory Operation
- read/write
- Passing Speed Of Object
- 0.6 m/s XGCS49 read or write 10 words) || 5.3 m/s XGCS49 read a serial number) || 1.6 m/s XGCS49 read a word) || 7.1 m/s XGCS89 read a serial number) || 4 m/s XGCS89 read a word) || 0.8 m/s XGCS89 read or write 10 words) || 7.1 m/s XGCS85 read a serial number) || 4 m/s XGCS85 read a word) || 0.8 m/s XGCS85 read or write 10 words)
Data Retention Time10 year(s)
Net Weight0.015 kg
Number Of Write Cycles2500000 30-30 °C || 100000 -25-85 °C
Memory TypeEEPROM
