Telemecanique Sensors XGHBPB3345 Electronic tag, Radio frequency identification XG, Key Fob
- MPN: XGHBPB3345
- PPN: TES-XGHBPB3345
CAD
$83.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

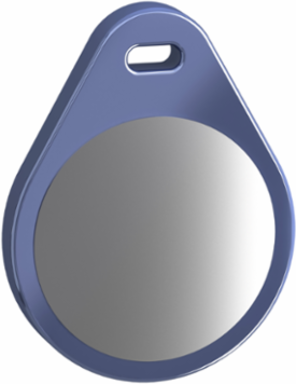

Electronic tag, Radio frequency identification XG, Key Fob
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Outer Dimension
- 40 x 31 x 4.8 mm
- [Sn] Nominal Sensing Distance
- 30 mm XGCS49 || 35 mm XGCS89 || 35 mm XGCS85
- Quantity Per Set
- set of 10
- Product Or Component Type
- electronic tag
- Ip Degree Of Protection
- IP67
Station NameXGCS
Memory Capacity112 B
Fixing Modesteel ring
Rfid Frequency13.56 MHz
Designkeyring
Rfid Electronic Tag NameXGHB
Complementary
- Number Of Read Cycles
- unlimited
- Data Retention Time
- 10 year(s)
- Material
- PC (polycarbonate)
- Memory Type
- EEPROM
Memory Operationread/write
Number Of Write Cycles100000 -25-80 °C
Net Weight0.005 kg
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Ik Degree Of Protection
- IK02 EN 50102
- Standards
- ISO 15693
- Shock Resistance
- 30 gn 11 ms EN 60068-2-27
Ambient Air Temperature For Storage-25-80 °C
Vibration Resistance2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
Ambient Air Temperature For Operation-5-80 °C
