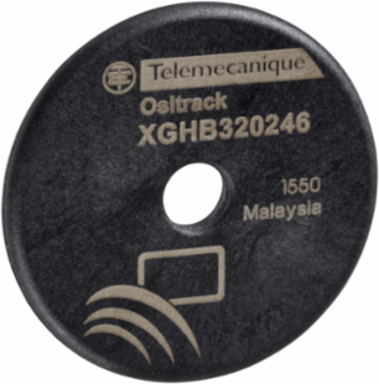

Telemecanique Sensors XGHB320246 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, disc Ø 30 x 3, 2000 Bytes
- MPN: XGHB320246
- PPN: TES-XGHB320246
CAD
$31.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, disc Ø 30 x 3, 2000 Bytes
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Radio frequency identification XG |
|---|---|
| Outer Dimension | Ø 30 x 3 mm |
| [Sn] Nominal Sensing Distance | 42 mm XGCS49 + field expander XGFEC540 || 48 mm XGCS49 || 65 mm XGCS89 || 80 mm XGCS49 + field expander XGFEC2525 || 65 mm XGCS85 |
| Quantity Per Set | set of 5 |
| Read Time | 7 + 2 x (number of 16-bit words) ms |
| Design | disc |
| Write Time | 7 + 2.4 x (number of 16-bit words) ms |
| Station Name | XGCS |
|---|---|
| Memory Capacity | 2 kB |
| Fixing Mode | by screws |
| Rfid Frequency | 13.56 MHz |
| Product Or Component Type | electronic tag |
| Ip Degree Of Protection | IP68 |
| Rfid Electronic Tag Name | XGHB |
Complementary
| Number Of Read Cycles | 10000000000 |
|---|---|
| Data Retention Time | 10 year(s) |
| Material | PPA (polyphthalamide) |
| Passing Speed Of Object | 2.1 m/s XGCS49 read a serial number) || 1.5 m/s XGCS49 read a word) || 0.6 m/s XGCS49 read or write 10 words) || 3.5 m/s XGCS89 read a serial number) || 2.5 m/s XGCS89 read a word) || 1 m/s XGCS89 read or write 10 words) || 3.5 m/s XGCS85 read a serial number) || 2.5 m/s XGCS85 read a word) || 1 m/s XGCS85 read or write 10 words) |
| Memory Operation | read/write |
|---|---|
| Number Of Write Cycles | 10000000000 -25-70 °C |
| Net Weight | 0.005 kg |
| Memory Type | FeRAM |
Environment
| Ik Degree Of Protection | IK02 EN 50102 |
|---|---|
| Standards | ISO 15693 |
| Shock Resistance | 30 gn 11 ms EN 60068-2-27 |
| Ambient Air Temperature For Storage | -40-85 °C |
|---|---|
| Vibration Resistance | 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70 °C |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
