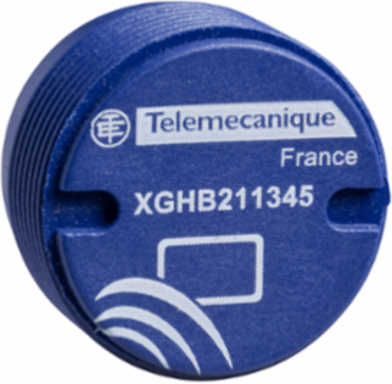

Telemecanique Sensors XGHB211345 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, cylindrical M18, 256 Bytes
- MPN: XGHB211345
- PPN: TES-XGHB211345
- UNSPSC: 39122230
CAD
$97.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, cylindrical M18, 256 Bytes
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Outer Dimension
- M18 x 1 x 12
- Fixing Mode
- by screws
- Read Time
- 12 + 0.825 x (number of 16-bit words) ms
- Design
- cylindrical M18
- [Sn] Nominal Sensing Distance
- 18 mm XGCS49 || 20 mm XGCS89 || 20 mm XGCS85
- Ip Degree Of Protection
- IP68
Station NameXGCS
Memory Capacity256 B
Rfid Frequency13.56 MHz
Product Or Component Typeelectronic tag
Write Time19 + 4.1 x (number of 16-bit words) ms
Quantity Per Setset of 5
Rfid Electronic Tag NameXGHB
Complementary
- Number Of Read Cycles
- unlimited
- Material
- PBT (polybutylene terephthalate)
- Memory Operation
- read/write
- Passing Speed Of Object
- 1.8 m/s XGCS49 read a serial number) || 0.6 m/s XGCS49 read a word) || 0.2 m/s XGCS49 read or write 10 words) || 3.2 m/s XGCS89 read a serial number) || 1.1 m/s XGCS89 read a word) || 0.6 m/s XGCS89 read or write 10 words) || 3.2 m/s XGCS85 read a serial number) || 1.1 m/s XGCS85 read a word) || 0.6 m/s XGCS85 read or write 10 words)
Data Retention Time10 year(s)
Net Weight0.02 kg
Number Of Write Cycles100000 -25-70 °C || 2500000 30-30 °C
Memory TypeEEPROM
Environment
- Ik Degree Of Protection
- IK02 EN 50102
- Vibration Resistance
- 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
- Ambient Air Temperature For Operation
- -25-70 °C
StandardsISO 15693
Shock Resistance30 gn 11 ms EN 60068-2-27
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060407EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111218EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
