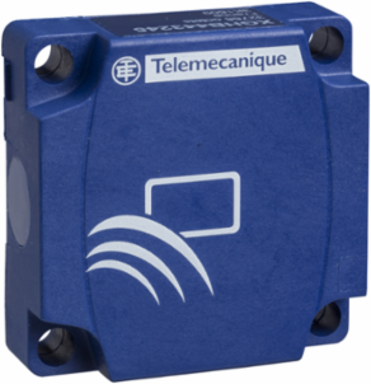

Telemecanique Sensors XGHB443245 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, flat form 40 x 40 x 15, 32768 Bytes
Telemecanique Sensors XGHB443245 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, flat form 40 x 40 x 15, 32768 Bytes
- MPN: XGHB443245
- PPN: TES-XGHB443245
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$551.75/ EA
Description
This XGHB electronic tag is part of the Telemecanique RFID system. The RFID system makes it possible to perform traceability, object identification (tracking), and access control functions. The applications are logistics, baggage tracking and sorting, food processing traceability, assembly lines in the automotive industry. The tag contains information associated with the object to which it is fixed. When the tag enters a reader or smart antenna field, it exchanges the data between the memory and the reader. It is compliant with ISO 14443 and IP68 rated. This electronic tag is made of PPA (polyphthalamide). It is available in size of 40mm (width) x 15mm (depth) x 40mm (height). It weighs 0.031kg. This tag is used in conveying, material handling, logistics and building sectors. It is also used for flexible production workshops, traceability, access control etc. This RFID electronic tag is associated with XGCS smart antenna. It must be mounted on a metal support and fixed with clips and screws. The RFID system makes it possible to perform traceability, object identification (tracking) and access control functions. The XG range offers a wide line of industrial RFID systems including smart antennas with integrated controller and 13.56MHz electronic tags.
Specifications
Environment
- Ik Degree Of Protection
- IK02 EN 50102
- Vibration Resistance
- 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
- Ambient Air Temperature For Operation
- -25-70 °C
StandardsISO 14443
Shock Resistance30 gn 11 ms EN 60068-2-27
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060407EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111218EN
Complementary
- Number Of Read Cycles
- 10000000000
- Material
- PBT (polybutylene terephthalate)
- Mounting Location
- possible on metal support
- Number Of Write Cycles
- 10000000000 -25-70 °C
- Memory Type
- FeRAM
Data Retention Time10 year(s)
Net Weight0.031 kg
Memory Operationread/write
Passing Speed Of Object2.3 m/s XGCS49 read a serial number) || 1.8 m/s XGCS49 read a word) || 1.7 m/s XGCS49 read or write 10 words) || 3.8 m/s XGCS89 read a serial number) || 3 m/s XGCS89 read a word) || 2.6 m/s XGCS89 read or write 10 words) || 3.8 m/s XGCS85 read a serial number) || 3 m/s XGCS85 read a word) || 2.6 m/s XGCS85 read or write 10 words)
Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Outer Dimension
- 40 x 40 x 15 mm
- Fixing Mode
- by clips || by screws
- Read Time
- 6 + 0.25 x (number of 16-bit words) ms
- Design
- flat form 40 x 40 x 15
- [Sn] Nominal Sensing Distance
- 25 mm XGCS49 || 39 mm XGCS89 || 39 mm XGCS85
- Ip Degree Of Protection
- IP68
Station NameXGCS
Memory Capacity32 kB
Rfid Frequency13.56 MHz
Product Or Component Typeelectronic tag
Write Time6 + 0.25 x (number of 16-bit words) ms
Quantity Per Setset of 1
Rfid Electronic Tag NameXGHB
