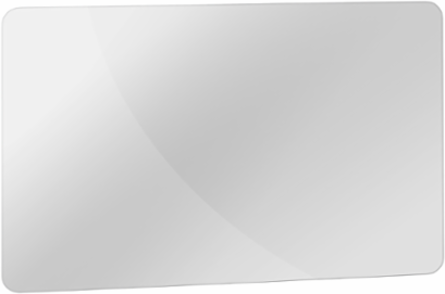

Telemecanique Sensors XGHB90E341 Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, ISO badge 54 x 85.5 x 1, 1 KB
- MPN: XGHB90E341
- PPN: TES-XGHB90E341
- UNSPSC: 43211710
CAD
$22.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, ISO badge 54 x 85.5 x 1, 1 KB
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Outer Dimension
- 54 x 85.5 x 1 mm
- [Sn] Nominal Sensing Distance
- 40 mm XGCS89 || 40 mm XGCS85 || 30 mm XGCS49
- Rfid Frequency
- 13.56 MHz
- Design
- ISO badge
- Rfid Electronic Tag Name
- XGHB
Station NameXGCS
Memory Capacity736 B
Quantity Per Setset of 25
Product Or Component Typeelectronic tag
Ip Degree Of ProtectionIP65
Complementary
- Number Of Read Cycles
- unlimited
- Data Retention Time
- 10 year(s)
- Material
- PVC (polyvinyl chloride)
- Memory Type
- EEPROM
Memory Operationread/write
Number Of Write Cycles100000 -25-50 °C
Net Weight0.005 kg
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Ambient Air Temperature For Storage
- -40-55 °C
- Ambient Air Temperature For Operation
- -25-50 °C
StandardsISO 14443
