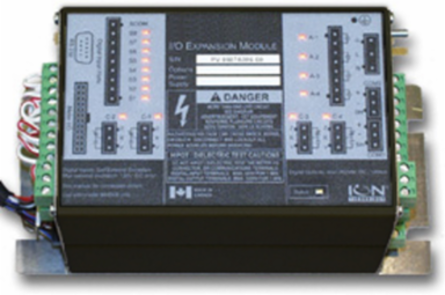

Schneider Electric P850EA0 PowerLogic I/O Expander Module - 8 Digital Inputs, 4 Triac Outputs, 4 Relay Outputs
- MPN: P850EA0
- PPN: SCH-P850EA0
CAD
$1953.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The PowerLogic ION8650 meters is the world’s most advanced socket-based energy and power quality meter. they offers unparalleled versatility, reliability, and total performance. Bidirectional, four-quadrant metering and industry-leading accuracy. The I/O expander module include 8 digital inputs, 4 triac outputs, and 4 relays outputs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, Canada
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Or Component Type
- I/O expansion module
- Range
- PowerLogic
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Package Weight(Lbs)
- 1.026 kg
- Warranty (In Months)
- 18
Local Publishable Date2025-07-24
Stocking FlagY
ServiceabilityNo
Weee Product Category5
Rohs Eur In ScopeYes
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Device Short NameP850E
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipmentwithout cable
Range Of ProductPowerLogic
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Eu Rohs Directive
- Not compliant
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Packaging Made With Recycled CardboardNo
Product CompatibilityION8650
General Attributes
- Product Or Component Type
- I/O expansion module
- Range Of Product
- PowerLogic
Provided Equipmentwithout cable
Output Attributes
- Number Of Outputs
- 4 form A triac output, 4 form C relay output
Input Attributes
- Number Of Inputs
- 8 digital
