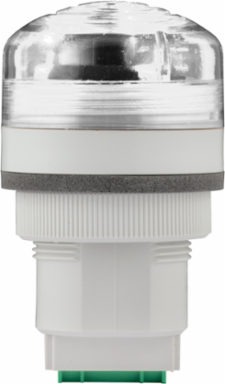

Federal Signal PMC-012-024C Panel Mount Audible Visual LED Light, Multi-Functional, UL and cUL, 12-24VAC/DC, Clear
- MPN: PMC-012-024C
- UPC: 782979235040
- PPN: FDS-PMC-012-024C
- UNSPSC: 39111706
CAD
$148.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PMC was developed with a multichannel technology. The device allows three levels of alarm (alert, pre-alarm, and alarm), controllable via independent electric contacts.PMC offers three independent electrical channels. Channel 1 includes a flashing light only. Channel 2 adds an intermittent sound to the flashing light. Channel 3 includes a steady light combined with a continuous sound.PMC has a self-extinguishing PC body that protects against vibrations, dust, and atmospheric elements. The device can be panel mounted through a 1.18-inch hole and secured with the provided locking ring.
Features
- Available in 12-24 Vac/dc or 48-240 Vac
- Three channels included:flashing light
- flashing lightflashing light & intermittent sound
- flashing light & intermittent soundsteady light & continuous sound
- steady light & continuous sound
- 50,000-hour LED
- Transparent polycarbonate lens
- Type 3R, IP65 enclosure
- IP69K Compliant
- CE and UKCA compliant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.09 lbs
- Certification Listing
- CE, UL, cUL
- dBa 10 Ft
- 75
- Flash Pattern Type
- Steady/Flashing
- Availability
- Available in 4-6 Weeks
- Mount Type
- Panel
- Operating Temp.
- -22˚ to +140˚F (-30˚ to +60˚C)
- Visual Signals Lens Color
- Clear
- Environmental Rating
- Ordinary Location
- Lead Time
- Available in 4-6 Weeks
Height2.74 in
Body ColorGray
dBa 1 Meter85
Diameter1.61 in (40.894 mm)
Flashes Per Minute150 (+/- 10) Flash Mode
Lens ColorClear
Operating Current Amps0.025 @ 12VDC/0.03 @ 24VDC/0.08 @ 12VAC/0.11 @ 24VAC
Operating Voltage12-24 Vac/dc
Visual Signals Operating Voltage12-24VAC/DC
Enclosure RatingIP65, IP69K, Type 3R
Product Life Cycle StatusCompleted
