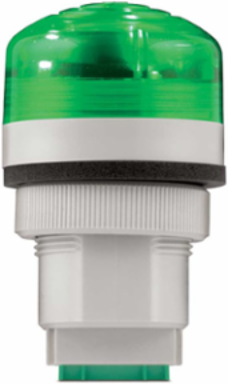

Federal Signal PMC-012-024G Panel Mount Audible Visual LED Light, Multi-Functional, UL and cUL, 12-24VAC/DC, Green
- MPN: PMC-012-024G
- UPC: 782979235033
- PPN: FDS-PMC-012-024G
- UNSPSC: 39111706
CAD
$148.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PMC was developed with a multichannel technology. The device allows three levels of alarm (alert, pre-alarm and alarm) controllable via independent electric contacts.PMC offers three independent electrical channels. Channel 1 includes a flashing light only. Channel 2 adds an intermittent sound to the flashing light. Channel 3 includes a steady light combined with a continuous sound.PMC has a self-extinguishing PC body that protects against vibrations, dust and atmospheric elements. The device can be panel mounted through a 1.18" hole and secured with the provided locking ring.
Features
- Available in 12-24VAC/DC or 48-240VAC
- 3 channels included:flashing light
- flashing lightflashing light & intermittent sound
- flashing light & intermittent soundsteady light & continuous sound
- steady light & continuous sound
- 50,000 hour LED
- Transparent polycarbonate lens
- Type 3R, IP65 enclosure
- IP69K Compliant
- CE and UKCA Certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
- Body Color
- Gray
- dBa 1 Meter
- 85
- Diameter (in)
- 1.61
- Flash Pattern Type
- Steady/Flashing
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- Panel
- Operating Temp.
- -22˚ to +140˚F (-30˚ to +60˚C)
- Visual Signals Lens Color
- Green
- Depth
- 2.74 in, 6.9596 cm
- Diameter
- 1.61 in, 4.0894 cm
Weight0.09 lbs
Certification ListingCE, UL, cUL
dBa 10 Ft75
Diameter (mm)40.894
Flashes Per Minute150 (+/- 10) Flash Mode
Lens ColorGreen
Operating Current Amps0.025 @ 12VDC/0.03 @ 24VDC/0.08 @ 12VAC/0.11 @ 24VAC
Operating Voltage12-24 Vac/dc
Visual Signals Operating Voltage12-24VAC/DC
Height2.74 in, 6.9596 cm
