Schneider Electric ABE7R16T210 Sub-base with Plug-in Electromechanical Relay, 16 Channels, IP2X

  • MPN: ABE7R16T210
  • PPN: SCH-ABE7R16T210
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $521.54

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.735kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S21 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginLatvia

    Complementary Attributes

    Maximum Supply Current1 A

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Certificate AgencyGL, CSA, UL, DNV, EAC
    Carbon Footprint Of The Distribution Phase [A4]0.10481018338152631, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.18587526496427836, 0.2 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]972 kg CO2 eq., 971.7360356355297
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityNo
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
    Number Of Channels16
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductModicon ABE7
    Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
    Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Status Led1 LED per channel (Green) channel status1 LED (Green) power ON
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint993 kg CO2 eq.
    Voltage Drop On Power Supply Fuse0.3 V
    Pep CodeENVPEP1212029_V4
    Pep Verification Date2026-06-18
    Psr VersionNo PSR
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Latvia, LV
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential In %6
    [Us] Rated Supply Voltage19...30 V IEC 61131-2
    Sub-base Typeoutput sub-base
    Package Weight(Lbs)702.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    [Ui] Rated Insulation Voltage2000 V terminals/mounting rails, 300 V coil circuit/contact circuits IEC 60947-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.5111922300645875
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]20 kg CO2 eq., 19.688411274810864
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityNo
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1212029EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1845
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Contacts Type And Composition1 NO
    Installation CategoryII IEC 60664-1
    Polarity Distributionvolt-free
    Product Or Component Typesub-base with plug-in electromechanical relay
    Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
    Resistance To Incandescent Wire750 °C IEC 60695-2-11
    ReturnabilityNo
    Software Versionv6.2.5-6
    Supply Circuit TypeDC
    Tightening Torque0.6 N.m flat Ø 3.5 mm
    Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024-01
    Pcr VersionPCR-4-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh2102.4
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    [Uimp] Rated Impulse Withstand Voltage2.5 kV
    Short-circuit Protection1 A internal fuse, 5 x 20 mm, fast blow PLC end)
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109150

    Environment Attributes Main

    Ambient Air Temperature For Operation-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
    Product CompatibilityABR7S21, ABR7S21
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1212029EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2026-06-18
    Psr VersionNo PSR
    Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint993.2263245887509
    Environmental DisclosureENVPEP1212029_V4
    Ip Degree Of ProtectionIP2X conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP1212029_V4
    Pcr VersionPCR-4-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typesub-base with plug-in electromechanical relay
    Range Of ProductModicon ABE7

    ETIM

    ETIM 8EC001284
    ETIM 9EC001284

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

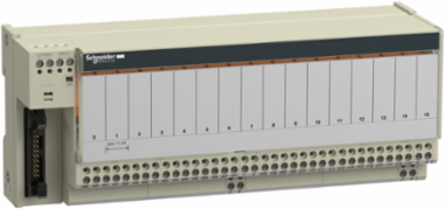

    Sub-base with Plug-in Electromechanical Relay, 16 Channels, IP2X

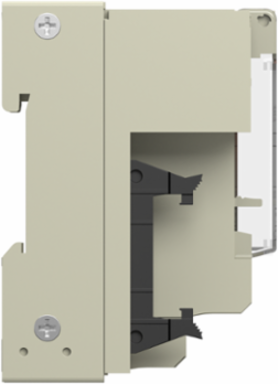

    Sub-base with Plug-in Electromechanical Relay, 16 Channels, IP2X

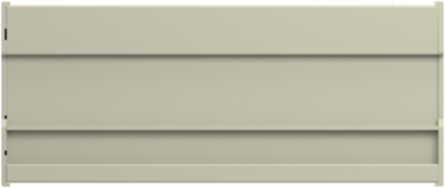

    Sub-base with Plug-in Electromechanical Relay, 16 Channels, IP2X

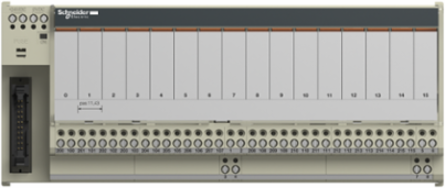

    Sub-base with Plug-in Electromechanical Relay, 16 Channels, IP2X

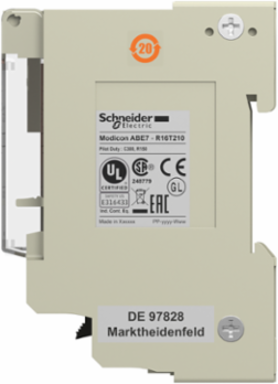

    Sub-base with Plug-in Electromechanical Relay, 16 Channels, IP2X
