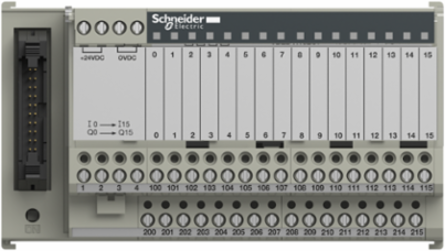

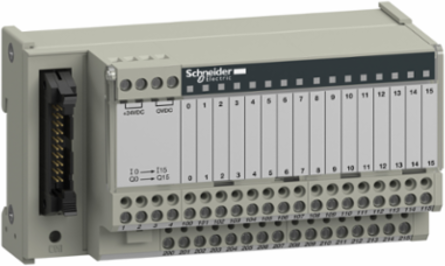

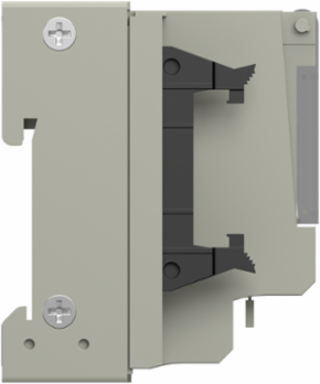

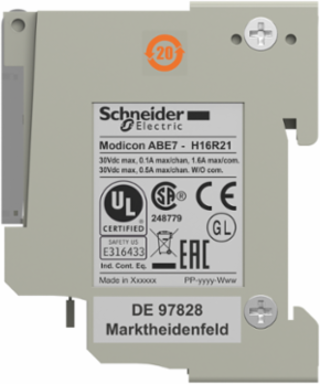

Schneider Electric ABE7H16R21 Passive I/O Sub-Base 16 Channels 1.8 A 19-30 V 125 mm

  • MPN: ABE7H16R21
  • PPN: SCH-ABE7H16R21
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $227.38

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.3kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Indonesia, Latvia, United States

    Complementary Attributes

    Maximum Current Per Output Common
    1.8 A
    Maximum Supply Current1.8 A

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Fixing Mode
    by clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit)
    Status Led
    1 LED per channel (Green) channel status, 1 LED (Green) power ON
    Connections - Terminals
    screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end, screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.6 kg CO2 eq., 0.6393505588734794
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    8 kg CO2 eq., 8.329712462419982
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1212029EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1845
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Connector Type
    HE-10
    Installation Category
    II IEC 60664-1
    Number Of Horizontal Rows
    2
    Pin Number
    20 pins
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Modicon ABE7
    Resistance To Incandescent Wire
    750 °C IEC 60695-2-11
    Returnability
    Yes
    Software Version
    v6.2.5-6
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    1 758 kg CO2 eq.
    Voltage Drop On Power Supply Fuse
    0.3 V
    Pep Code
    ENVPEP1212029_V4
    Pep Verification Date
    2026-06-18
    Psr Version
    No PSR
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Low voltage; 2020; Latvia, LV
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential, In %
    6
    [Ui] Rated Insulation Voltage
    2000 V
    Short-circuit Protection
    2 A internal fuse, 5 x 20 mm, fast blow PLC end)
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2, 8 kV air) level 3 IEC 61000-4-2
    Certificate AgencyDNV, CSA, UL, GL, EAC
    Carbon Footprint Of The Distribution Phase [A4]0.04434276989218421, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0786395351771947, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 749 kg CO2 eq., 1749.1248641439533
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityNo
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current Per Channel0.5 A
    Number Of Channels16
    Number Of Terminal Per Channel2
    Polarity Distribution0 V or 24 V
    Product Or Component Typepassive discrete I/O sub-base
    Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
    Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Circuit TypeDC
    Tightening Torque0.6 N.m flat Ø 3.5 mm
    Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024-01
    Pcr VersionPCR-4-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh3784.32
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Width Nominal125 mm
    [Us] Rated Supply Voltage19...30 V IEC 61131-2
    Sub-base TypeI/O sub-base
    Package Weight(Lbs)297.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    1758.2169094703163
    Environmental Disclosure
    ENVPEP1212029_V4
    Ip Degree Of Protection
    IP2X conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP1212029_V4
    Pcr Version
    PCR-4-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1212029EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2026-06-18
    Psr VersionNo PSR

    General Attributes

    Product Or Component Type
    passive discrete I/O sub-base
    Range Of ProductModicon ABE7

    ETIM

    ETIM 8
    EC002585
    ETIM 9EC002585

    Output Attributes

    Maximum Current Per Output Common
    1.8 A

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
