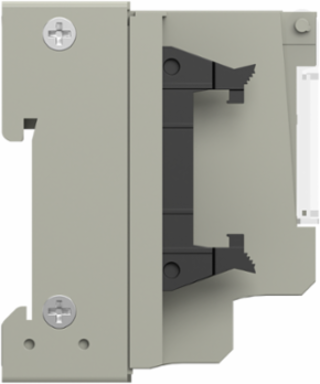

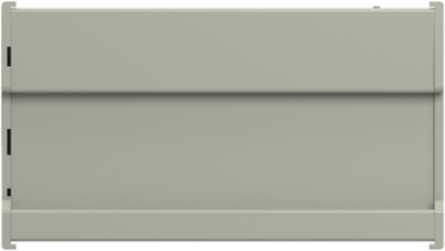

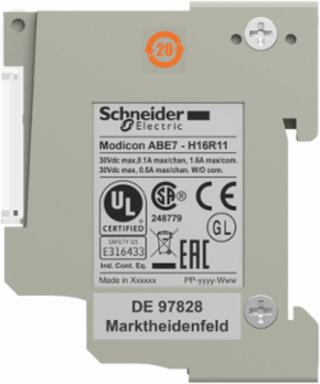

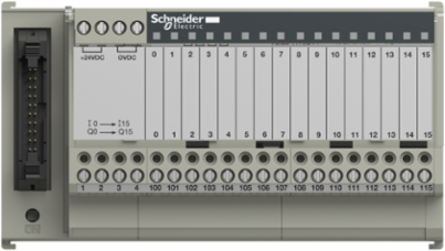

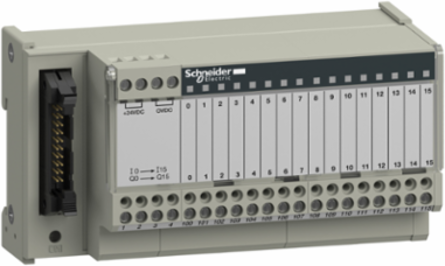

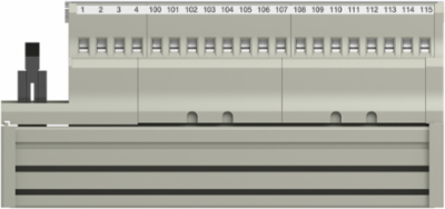

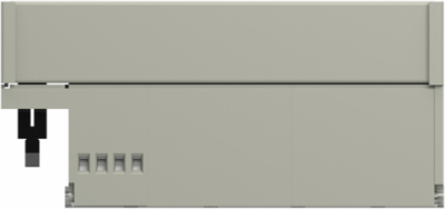

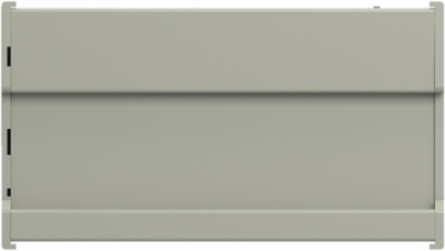

Schneider Electric ABE7H16R11 Modicon ABE7 Passive I/O Sub-Base, 16 Channels, 125mm Width
- MPN: ABE7H16R11
- PPN: SCH-ABE7H16R11
CAD
$167.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.274kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia
Complementary Attributes
- Maximum Current Per Output Common
- 1.8 A
Maximum Supply Current1.8 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Fixing Mode
- by clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit)
- Status Led
- 1 LED per channel (Green) channel status, 1 LED (Green) power ON
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end, screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.6070601266071419
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.9090199138129105
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1212029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Connector Type
- HE-10
- Installation Category
- II IEC 60664-1
- Number Of Horizontal Rows
- 1
- Pin Number
- 20 pins
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon ABE7
- Resistance To Incandescent Wire
- 750 °C IEC 60695-2-11
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 758 kg CO2 eq.
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 6
- [Ui] Rated Insulation Voltage
- 2000 V
- Short-circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2, 8 kV air) level 3 IEC 61000-4-2
Certificate AgencyDNV, UL, GL, CSA, EAC
Carbon Footprint Of The Distribution Phase [A4]0.04210323605924561, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.07466784148137677, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 749 kg CO2 eq., 1749.1248641439533
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Per Channel0.5 A
Number Of Channels16
Number Of Terminal Per Channel1
Polarity Distributionno
Product Or Component Typepassive discrete I/O sub-base
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Circuit TypeDC
Tightening Torque0.6 N.m flat Ø 3.5 mm
Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh3784.32
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal125 mm
[Us] Rated Supply Voltage19...30 V IEC 61131-2
Sub-base TypeI/O sub-base
Package Weight(Lbs)282.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1757.757715261914
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- passive discrete I/O sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002585
ETIM 9EC002585
Output Attributes
- Maximum Current Per Output Common
- 1.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
