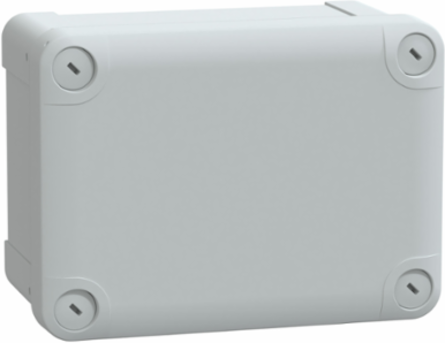

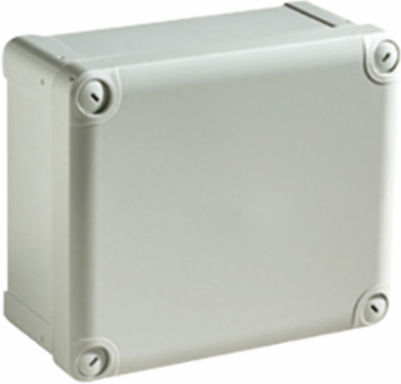

Schneider Electric NSYTBP16128 Thalassa TBP Industrial Box, IP66, 150x105x80 mm, Grey RAL 7035
Schneider Electric NSYTBP16128 Thalassa TBP Industrial Box, IP66, 150x105x80 mm, Grey RAL 7035
- MPN: NSYTBP16128
- PPN: SCH-NSYTBP16128
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$15.86/ EA
Description

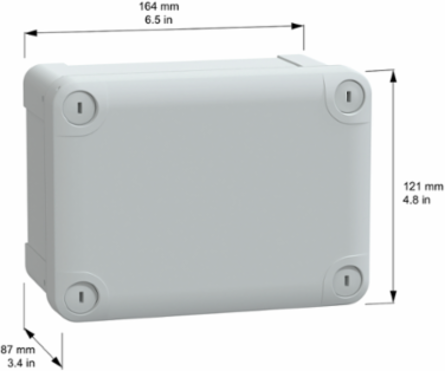

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Specifications
Environment
- Ik Degree Of Protection
- IK08 conforming to IEC 62262
- Ip Degree Of Protection
- IP66 NEMA 4.4X
- Fire Resistance
- 960 °C
Ambient Air Temperature For Operation-25-80 °C
Ambient Air Temperature For Storage-15-60 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2012016EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2012016EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Product Certifications
- TÜV || UL
- Net Weight
- 0.33 kg
- Material
- polycarbonate
- Colour
- grey RAL 7035)
StandardsUL 508 A || IEC 62208
Electrical Insulation Classclass II

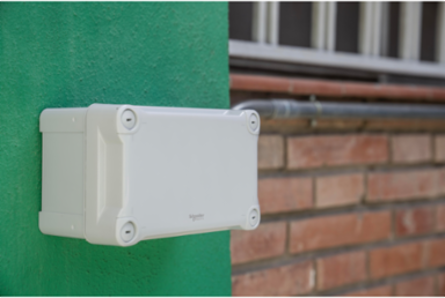

Mounting Locationoutdoor (with canopy or shelter and anticondensation valve)
Specifications
- Removable Parts
- cover by captive screws
- Product Or Component Type
- industrial box
- Internal Height
- 150 mm
- Product Name
- Thalassa TBP
- Device Composition
- 1 body || 1 cover || 4 cover screw
- Range
- Thalassa
- Cover Fixing
- plastic screws
- Quantity Per Set
- set of 2
- Depth
- 87 mm
Height164 mm
Internal Width105 mm
Internal Depth80 mm
Lock Typecaptive screw flat outside sealed area
Type Of Front Coverlow plain cover
Body Typeone piece moulded
Enclosure Mountingwall mounted
Width121 mm
Device Applicationmulti-purpose
