Schneider Electric NSYTBP24198T Thalassa TBP Industrial Enclosure 225x175x80 mm IP66 IK08

Thalassa TBP Industrial Enclosure 225x175x80 mm IP66 IK08
  • MPN: NSYTBP24198T
  • PPN: SCH-NSYTBP24198T

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$110.35/ EA

Description

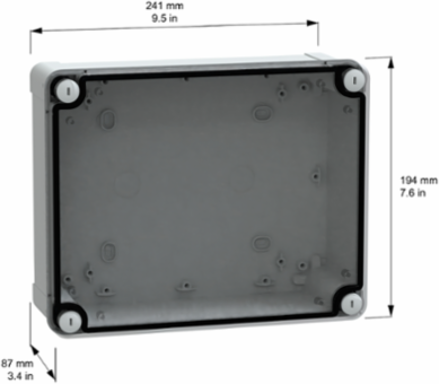

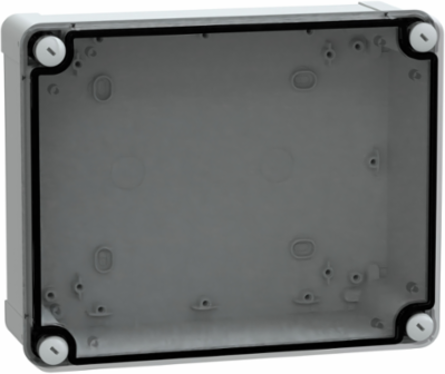

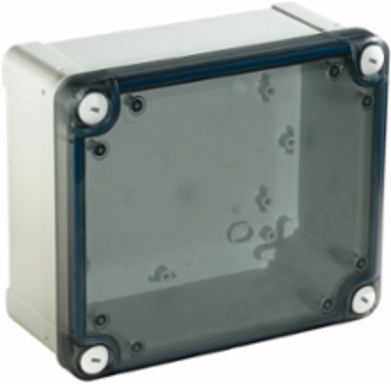

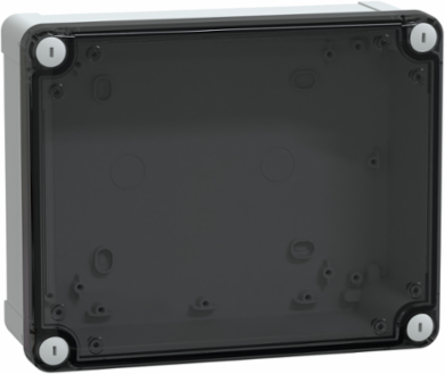

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Specifications

Environment

Ik Degree Of Protection
IK08 conforming to IEC 62262
Ip Degree Of Protection
IP66 NEMA 4.4X
Fire Resistance
960 °C
Ambient Air Temperature For Operation-25-80 °C
Ambient Air Temperature For Storage-15-60 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2012016EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
ENVEOLI2012016EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Product Certifications
TÜV || UL
Net Weight
0.64 kg
Material
polycarbonate
Colour
grey RAL 7035) || transparent
StandardsUL 508 A || IEC 62208
Electrical Insulation Classclass II

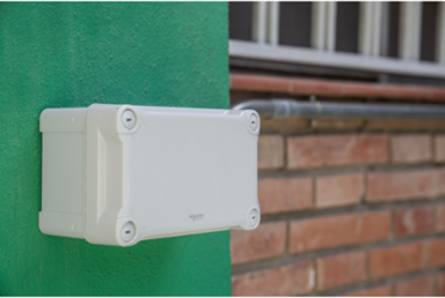

Mounting Locationoutdoor (with canopy or shelter and anticondensation valve)

Specifications

Removable Parts
cover by captive screws
Product Or Component Type
industrial box
Internal Height
225 mm
Product Name
Thalassa TBP
Device Composition

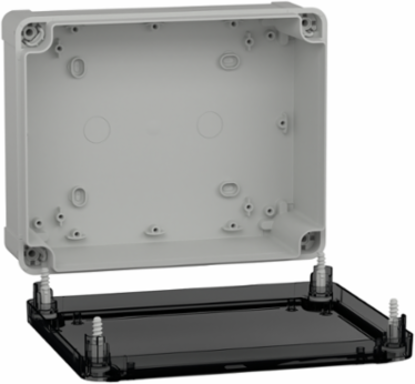

1 body || 1 cover || 4 cover screw
Range
Thalassa
Cover Fixing
plastic screws
Width
194 mm
Device Application
multi-purpose
Height241 mm
Internal Width175 mm
Internal Depth80 mm
Lock Typecaptive screw flat outside sealed area
Type Of Front Coverlow transparent cover
Body Typeone piece moulded
Enclosure Mountingwall mounted
Depth87 mm
