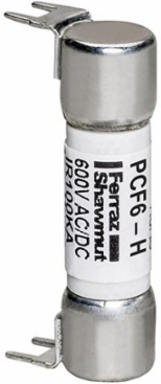

Mersen PCF6-H Fuse PCF - Midget - Fast-Acting 600VAC 600VDC 6A Double Hole Mount
- MPN: PCF6-H
- UPC: 782001906986
- PPN: FER-PCF6-H
CAD
$58.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PCF series of fast-acting direct-mountable fuses address the need for electrical protection at the PC board. These fuses help PCB users/manufacturers reduce parts by eliminating clips and/or fuseholders and allowing automated assembly. PCF fuses can be used for the protection of main frame power boards, small circuit breakers with low-interrupting capabilities and other critical components. PCF fuses bring greatly increased ampere, voltage and interrupting ratings to the board itself and are UL Component Recognized.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Midget
- Mounting
- PC Mount
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 0.021 lb
Rated voltage DC UL600 V
Ampere Rating6 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1100 kA
Connection/Terminal TypeDouble Hole Mount
Length1.53 in
