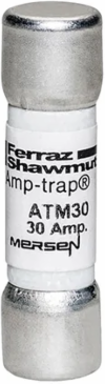

Mersen ATM30 Fuse Amp-Trap® 600V 30A Fast-Acting Midget Fuse, 1-1/2" x 13/32", 100 kA I.R.
- MPN: ATM30
- UPC: 782001900731
- PPN: FER-ATM30
CAD
$8.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- This Amp-Trap® ATM series midget fuse is fully rated for 30 Amps at up to 600V AC and 600V DC.
- Fast-acting clearing characteristics, this single-element fuse responds instantly to harmful spikes and short circuits.
- Designed in the globally recognized North American non-rejection midget form factor, this cartridge fuse measures exactly 13/32 inch in diameter by 1-1/2 inches in length (10.3mm x 38.1mm.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Midget
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 0.017 lb
Rated voltage DC UL600 V
Ampere Rating30 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1100 kA
Connection/Terminal TypeFerrule
Length1.5 in
