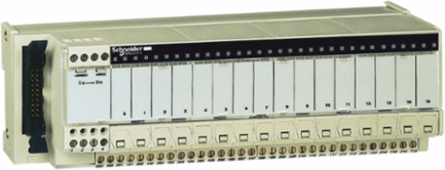

Schneider Electric ABE7H16F43 passive connection sub-base ABE7 - 16 outputs - fuses - Led - isolator

passive connection sub-base ABE7 - 16 outputs - fuses - Led - isolator
  • MPN: ABE7H16F43
  • PPN: SCH-ABE7H16F43

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$347.69/ EA

Description

passive connection sub-base ABE7 - 16 outputs - fuses - Led - isolator

Specifications

Environment

Product Certifications
DNV || GL || UL || CSA || EAC
Ambient Air Temperature For Operation
-5-60 °C IEC 61131-2
Vibration Resistance
2 gn 10-150 Hz)IEC 60068-2-6
Pollution Degree
2 IEC 60664-1
Ambient Air Temperature For Storage
-40-80 °C IEC 61131-2
Resistance To Fast Transients
2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP2X IEC 60529
Resistance To Incandescent Wire750 °C IEC 60695-2-11
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121229EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN

Complementary

Pin Number
20 pins
Number Of Horizontal Rows
1
Status Led
1 LED per channel (green) channel status || 1 LED per channel (red) blown fuse indication || 1 LED (green) power ON
Maximum Current Per Output Common
1.8 A
Net Weight
0.64 kg
Maximum Voltage Drop Per Channel
2 V
Polarity Distribution
0 V
Maximum Supply Current
1.8 A
Width
206 mm
Short-Circuit Protection2 A internal fuse, 5 x 20 mm, fast blow PLC end) || 0.125 A fuse per channel, 5 x 20 mm, fast blow output circuit)
Current Per Channel0.125 A
Installation CategoryII IEC 60664-1
[Ui] Rated Insulation Voltage2000 V
Fixing Modeby clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Connector TypeHE-10
Tightening Torque0.6 N.m flat Ø 3.5 mm
Supply Circuit TypeDC
Voltage Drop On Power Supply Fuse0.3 V

Specifications

Range Of Product
Modicon ABE7
Number Of Terminal Per Channel
2
Number Of Channels
16
Sub-Base Type
output sub-base
Product Or Component Typepassive discrete I/O sub-base
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Channel Additional Information1 switch disconnector per channel
[Us] Rated Supply Voltage19...30 V IEC 61131-2
