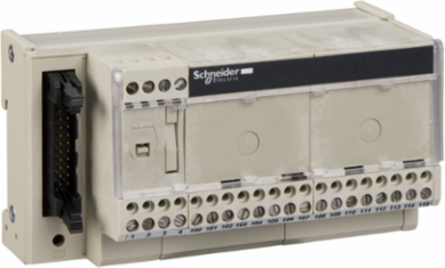

Schneider Electric ABE7H16R10 Passive I/O Sub-Base, 16 Inputs/Outputs, 1.8 A per Output, 125 mm Width
- MPN: ABE7H16R10
- PPN: SCH-ABE7H16R10
CAD
$107.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This passive I/O sub-base from Schneider Electric is a versatile solution for automation and control applications, featuring 16 inputs and outputs that allow for seamless integration within your systems. With a robust current rating of 1.8 A per output, it ensures reliable performance and efficient data management in demanding environments. Designed with a compact width of 125 mm, this module is ideal for optimizing space in control panels, making it a practical choice for both seasoned professionals and those working on intricate automation projects. Its compatibility with various PLC and HMI setups further enhances its utility, establishing it as a key component in your data acquisition and control architecture.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 19...30 V DC IEC 61131-2
- Current per Channel
- 0.5 A
- Number of Channels
- 16
- Pin Number
- 20 pins
- Rated Insulation Voltage
- 2000 V
- Short-Circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow
- Width
- 125 mm (4.92 in)
- Net Weight
- 0.274 kg
- Connections - Terminals
- Screw type terminals, AWG 28 to 16 flexible with cable end; AWG 26 to 12 solid; AWG 26 to 14 flexible without cable end; 2 terminals flexible with cable end; 2 terminals solid
- Sub-Base Type
- I/O sub-base
- Resistance To Incandescent Wire
- 750 b0C IEC 60695-2-11
- Vibration Resistance
- 2 gn 10-150 Hz IEC 60068-2-6
- Resistance To Radiated Fields
- 10 V/m 26 MHz-1 GHz IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation
- -5 to 60 b0C IEC 61131-2
- Pollution Degree
- 2 IEC 60664-1
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Maximum Supply Current1.8 A
Maximum Current Per Output Common1.8 A
Number of Terminals per Channel1
Connector TypeHE-10
Installation CategoryII IEC 60664-1
Voltage Drop On Power Supply Fuse0.3 V
Tightening Torque0.6 N.m flat d8 3.5 mm (5.31 lbf.in)
Number of Horizontal Rows1
Product Or Component TypePassive discrete I/O sub-base
Status LED1 LED (green) power ON
Shock Resistance15 gn 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge4 kV contact, 8 kV air, level 3 IEC 61000-4-2
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Storage-40 to 80 b0C IEC 61131-2
Product CertificationsCSA, UL, GL, DNV, EAC
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)
Country of OriginLatvia
