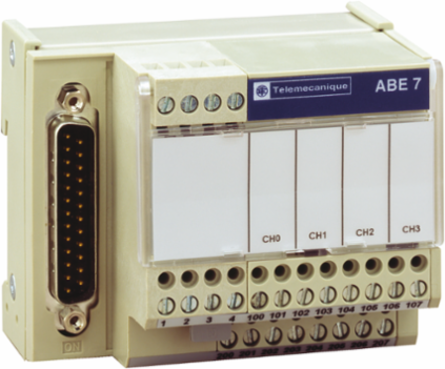

Telemecanique Sensors ABE7CPA410 Modicon ABE7 Connection Sub-Base for 4 Analog Channels, IP20 Rated
- MPN: ABE7CPA410
- PPN: SCH-ABE7CPA410
CAD
$963.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. This connection sub-base is for distribution of 4 analogue channels protected. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXAMI0410 analogue input module. It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Documentation & Downloads
Specifications
Key Specifications
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 4
Range Of ProductModicon ABE7
Product Or Component Typeconnection sub-base for analogue channels
Complementary
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Product Compatibility
- Modicon M340 BMXAMI0410
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
- Fixing Mode
- by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Installation CategoryII IEC 60664-1
Connection To PlcSUB-D 25
Net Weight0.18 kg
Function Of Moduledistribution of supply and 4 analogue channels protected isolated Modicon M340
Environment
- Product Certifications
- DNV || UL || GL || CSA
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation
- 0-60 °C IEC 61131-2
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 IEC 60529
Pollution Degree2 IEC 60664-1
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Shock Resistance15 gn 11 ms IEC 60068-2-27
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
