Tripp Lite PDUNVR30HVLX PDU, Monitored Per-Outlet, LX Platform, 5.5kW, 208/230V, 24 Outlets, L6-30P Input, 0U, TAA
- MPN: PDUNVR30HVLX
- UPC: 037332242280
- PPN: TRP-PDUNVR30HVLX
CAD
$2700.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

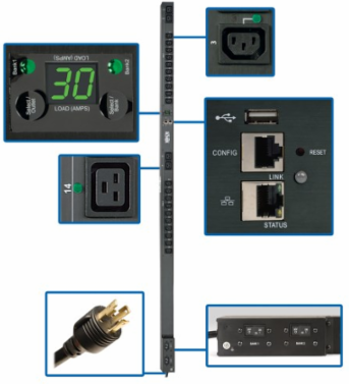

5.5kW Single-Phase Monitored Per-Outlet PDU - LX Platform, 24 Outlets (208/230V), L6-30P Input, 0U, TAA
Features
- 5.5kW Single-Phase Monitored Per-Outlet PDU
- Built-in LX Platform interface
- Configuration cable
- (20) C13 plug-lock inserts
- (4) C19 plug-lock inserts
- Rack-mounting hardware
- PDUMVROTATEBRKT mounting bracket accessory
- Owner's manual
Documentation & Downloads
Specifications
Dimensions

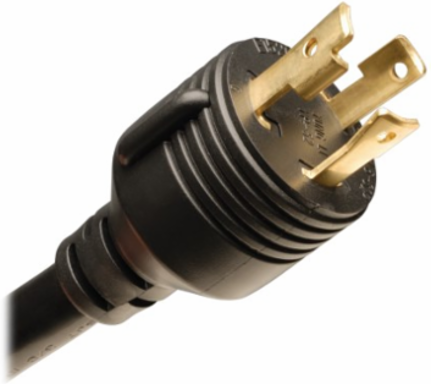

| PDU Plug Type | NEMA L6-30P |
|---|---|
| Output Receptacle Details | Compatible with Eaton Tripp Lite Power Cords |

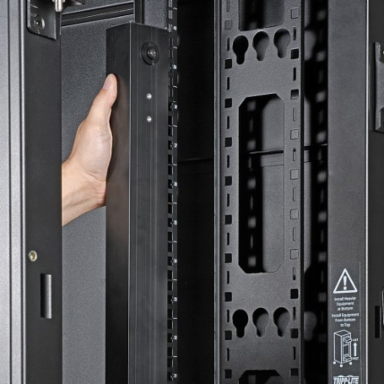

| Form Factors Supported | 0U vertical rackmount; includes rackmount brackets; supports toolless mounting in button-mount compatible racks |
| Unit Dimensions | 70 x 2.200 x 2.600 in |

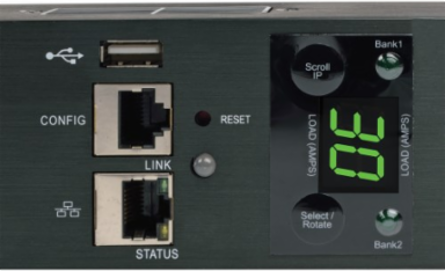

| Communications Cable | RJ45-to-DB9 configuration/console access cable |
| Input Cord Length | 10 ft |
|---|---|

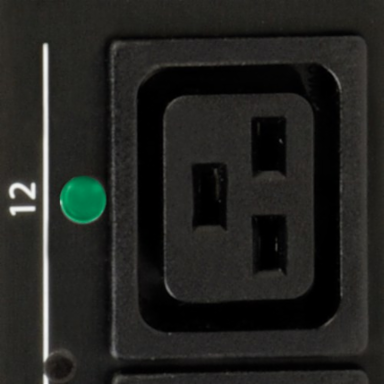

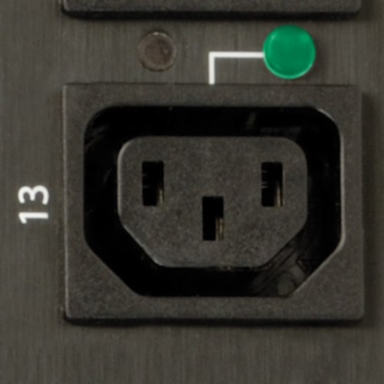

| Output Receptacles | (20) C13; (4) C19 |
| PDU Form Factor | Vertical (0U) |
| Unit Weight | 12 lb |
Material
| Material of Construction | Metal |
|---|
Compliance
| Product Warranty Period | 2-year limited warranty |
|---|
Reference
| PowerAlert Software | LX Platform Interface: PowerAlert Device Manager |
|---|
Performance
| PDU Type | Monitored |
|---|---|
| PDU Input Voltage | 208; 230 |
| Maximum Input Amps | 24A (agency de-rated, continuous) |
| Frequency Compatibility | 50 / 60 Hz |

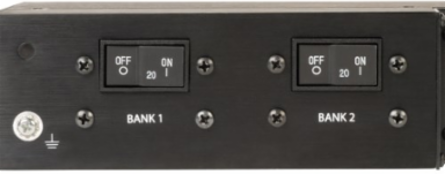

| Overload Protection | Two 20A breakers protect 12 outlets each |
| Switches | SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and load banks; hold SELECT BANK 4 seconds to rotate display 90 degrees; hold SELECT OUTLET 4 seconds to scroll IP address; LX Platform Interface recessed reset switch for interface reboot and factory reset |
| Current Measurement Accuracy | +/-1% |
| Power Measurement Accuracy | +/-1% |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Storage Temperature Range | 5 to 140 F (-15 to 60 C) |
| Operating Elevation | 0-10000 ft (0-3000 m) |
| Input Phase | Single-Phase |
|---|---|
| Recommended Electrical Service | Single-phase 30A 208/230V service |
| Output Capacity Details | 5.5kW (230V), 5kW (208V) total capacity / 30A max (agency de-rated to 24A); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
| Output Nominal Voltage | 208/230V |

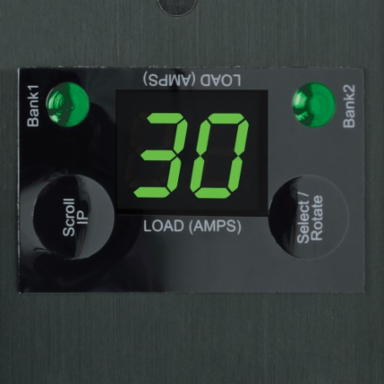

| Front Panel LCD Display | Digital display reports load level in amps for Load Bank 1 (outlets 1-12), Load Bank 2 (outlets 13-24), combined banks 1&2 (outlets 1-24), and each individual output receptacle; display can also scroll the configured IP address |
| LED Indicators | BANK 1 and BANK 2 LEDs verify which load bank is displayed; 24 additional LEDs (one per output receptacle) show power status and flash to indicate active display reporting; Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green) |
| Voltage Measurement Accuracy | +/-1% |
| SNMP Compatibility | LX platform interface provides remote monitoring via Java-free HTML5 web interface, Telnet, SSH and SNMP management systems |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 5% to 95% non-condensing |
