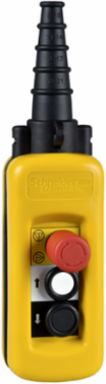

Schneider Electric XACA2713H7 Harmony XAC Pendant Control Station, Yellow, 2 Push Buttons, IP65
- MPN: XACA2713H7
- PPN: SCH-XACA2713H7
CAD
$390.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony XAC Pendant Control Station by Schneider Electric is designed for industrial environments that require durable and reliable control solutions. With its vibrant yellow exterior and robust construction, this control station not only stands out for visibility but also features a high IP65 rating, ensuring resistance to dust and water ingress. Equipped with two push buttons, it offers straightforward operation for various automation tasks, making it an essential component for enhancing safety and efficiency in any control setup. Whether you re managing machinery or coordinating processes, this pendant station provides the functionality and reliability you need.
Features
- This complete, ready-to-use Harmony XAC pendant control station is specifically engineered for the safe, reliable control of single-speed hoist motors. Outfitted with a specialized pistol-grip enclosure housing two mechanical-interlocked push buttons, it delivers intuitive, slow-break "Raise" and "Lower" command execution that prevents simultaneous opposing signal faults in overhead cranes and industrial lifting equipment.
- Built to endure the punishing conditions of busy factories and shipyards, the housing is molded from high-impact polypropylene with an IK08 mechanical impact protection rating and a 100 gn shock resistance certification. This robust construction ensures that dropping the unit onto a concrete shop floor or striking it against heavy steel structural members will not crack the casing or interrupt your crane operations.
- Featuring a fully double-insulated design with an IP65 ingress protection rating, this control station completely blocks fine dust, airborne particulates, and low-pressure water streams from entering the internal electrical components. Combined with a wide operational temperature resilience ranging from -25 C to 70 C, it provides reliable crane and hoist control in unheated warehouses, outdoor lumber yards, and high-humidity processing facilities.
- Eliminating the need to cut or drill custom entries, the unit comes equipped with a flexible rubber boot sleeve that accommodates stepped cable entries from 8 mm to 26 mm (0.31 to 1.02 inches).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Mexico, United States
Physical Attributes
- Control Station Color
- yellow
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Important Information Attributes
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Certificate Agency
- UL, CSA, CCC, GOST
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1176989899, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0028050458, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Contact Operation
- slow-break
- Control Station Application
- control of single speed hoist motor
- Control Station Type
- double insulated
- Electrical Circuit Type
- control circuit
- Enclosure Type
- complete ready for use
- Mechanical Interlocking
- with mechanical interlocking
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
- Shock Resistance
- 100 gn IEC 60068-2-27
- Sustainable Packaging
- Yes
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Control Station Color
- yellow
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Czech Republic
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Recyclability Potential In %
- 32
- [Ui] Rated Insulation Voltage
- 600 V 3)
- Connections - Terminals
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Terminal Identifier(13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.5082097902
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.7858477078
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Cable Entryrubber sleeve with stepped entry 8-26 mm
Control Button Typefirst push-button 1 NO raise, slowsecond push-button 1 NO lower, slow
Control Station Composition2 push-buttons
Device Short NameXACA
Enclosure Materialpolypropylene
Mechanical Durability1000000 cycles
Operating Force10-10 N push-button
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0709005EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A fuse protection cartridge gG
Package Weight(Lbs)639.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.4145615338
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ZB2BE101 for each direction
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000234
ETIM 9EC000234
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
