Schneider Electric XACA471H7 Harmony XAC Pendant Control Station, 4 Push Buttons, Yellow, IP65
- MPN: XACA471H7
- PPN: SCH-XACA471H7
CAD
$427.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric XACA471H7 Harmony XAC Pendant Control Station is a robust solution designed for automation and control applications. Featuring four push buttons housed in a durable yellow casing, this pendant station is not only visually distinctive but also built to withstand challenging environments with its IP65 rating, ensuring dust and water resistance. Ideal for various operational needs, its design facilitates intuitive control while enhancing the safety and efficiency of your processes. This control station is a vital component for any set-up requiring reliable operational oversight in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Physical Attributes
- Control Station Color
- yellow
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Important Information Attributes
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Certificate Agency
- CSA, UL, GOST, CCC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.13665384615384615, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.16401709401709402, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00010874999999999997
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Contact Operation
- slow-break
- Control Station Application
- control of single speed hoist motor
- Control Station Type
- double insulated
- Electrical Circuit Type
- control circuit
- Enclosure Type
- complete ready for use
- Mechanical Interlocking
- with mechanical interlocking between pairs
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
- Shock Resistance
- 100 gn IEC 60068-2-27
- Sustainable Packaging
- Yes
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Control Station Color
- yellow
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A fuse protection cartridge gG
- Package Weight(Lbs)
- 721.000 g
- Warranty (In Months)
- 18

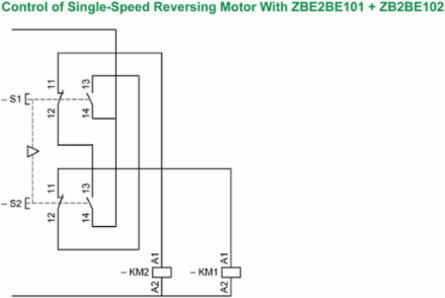

Terminal Identifier(13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.4179529914529914
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.155982905982905
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo

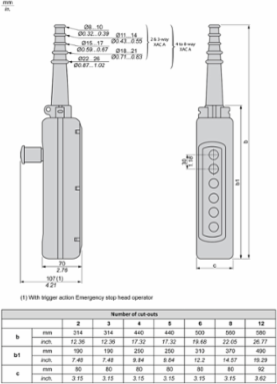

Cable Entryrubber sleeve with stepped entry 8-26 mm
Control Button Typefirst push-button 1 NO raise, slowsecond push-button 1 NO lower, slowfourth push-button 1 NO left, slowthird push-button 1 NO right, slow
Control Station Composition4 push-buttons
Device Short NameXACA
Enclosure Materialpolypropylene
Mechanical Durability1000000 cycles
Operating Force10-10 N push-button
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0709005EN
Pep Verification Date2024-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Ui] Rated Insulation Voltage600 V 3)
Connections - Terminalsscrew clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.874715587606837
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ZB2BE101 for each direction
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000234
ETIM 9EC000234
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
