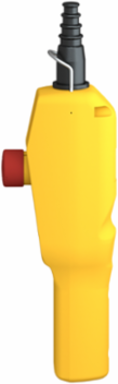

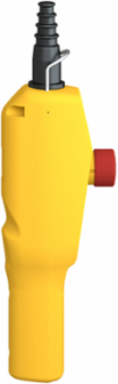

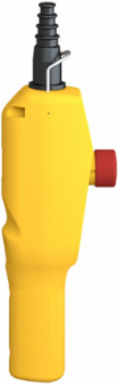

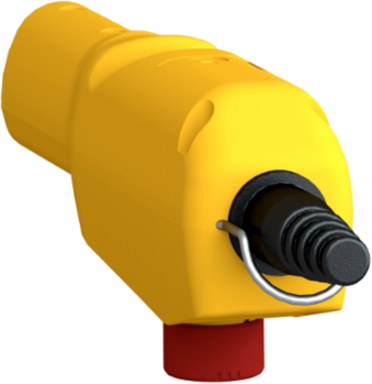

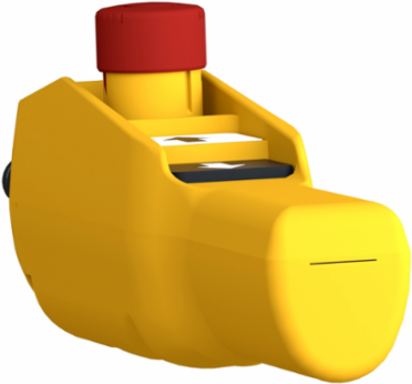

Schneider Electric XACA2013 Harmony XAC Yellow Pendant Control Station, 2 Push Buttons, IP65

MPN: XACA2013
PPN: SCH-XACA2013

$261.05

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XAC, yellow pendant station for hoist motor with pistol grip has single speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France

Physical Attributes

Control Station Color	yellow

Complementary Attributes

Maximum Resistance Across Terminals	25 MOhm

Rated Operational Power In W	40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Code Designation	A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Terminal Identifier	(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Connections - Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Terminals Description Iso N°2	(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.3496132867
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.9164710956
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cable Entry	rubber sleeve with stepped entry 7-15 mm
Control Station Application	control of single speed hoist motor
Control Station Type	double insulated
Device Short Name	XACA pistol grip
Enclosure Material	polypropylene
Mechanical Durability	1000000 cycles
Operating Force	13-15 N
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Software Version	EIME v5.9.4
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP0709005EN
Pep Verification Date	2022-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
[Ithe] Conventional Enclosed Thermal Current	10 A
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Control Button Type	first push-button 1 NO raise, slowsecond push-button 1 NO lower, slow, stop push-button Ø 30 mm 1 NC latching
Certificate Agency	CSA, UL
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The Distribution Phase [A4]	0.0809687879, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0019296781, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	slow-break
Control Station Composition	2 push-buttons + 1 emergency stop
Control Type	intuitive
Electrical Circuit Type	control circuit
Enclosure Type	complete ready for use
Mechanical Interlocking	with mechanical interlocking
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	pendant control station
Range Of Product	Harmony XAC
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Control Station Color	yellow
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Czech Republic
Energy Model - Use [B6]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Recyclability Potential In %	32
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Short-circuit Protection	10 A fuse protection cartridge gG
Package Weight(Lbs)	332.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	2.3489828483
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	ZB2BE101 for each directionZB2BE102 for emergency stop
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2022-11-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP0709005EN
Ip Degree Of Protection	IP65 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0709005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
