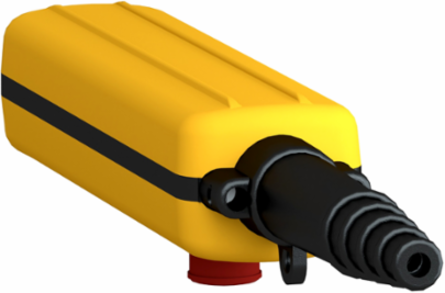

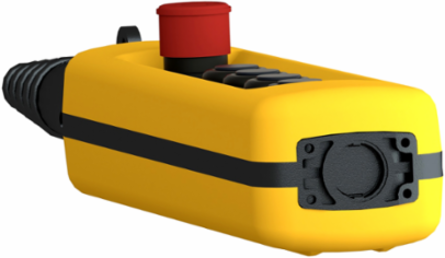

Schneider Electric XACA4713 Harmony XAC Yellow Pendant Control Station, 4 Push Buttons, IP65, 0.8 kg
- MPN: XACA4713
- PPN: SCH-XACA4713
CAD
$505.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 4 push buttons and 1 emergency stop with "raise", "lower", "left", "right" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Features
- Part of the HarmonyTM XAC line, this complete pre-configured pendant control station is housed in a high-visibility, double-insulated bright yellow polycarbonate enclosure. It is specifically engineered to endure punishing mechanical impacts, accidental drops, and dragging across concrete floors, ensuring crane and hoist operators can safely control heavy lifting equipment without fracturing the housing.
- This control station features 4 mechanically interlocked operators paired with a clear, logical button sequence for precise machinery handling. It includes 2 flush push buttons for "raise" and "lower" transitions, and 2 flush push buttons for "Left" and "Right" directions, providing clear, intuitive physical management for overhead cranes, gantry systems, and industrial winches.
- Each directional button is equipped with an advanced, two-speed progressive contact block assembly. When an operator presses a button halfway down, it closes the first stage contact to initiate slow, high-precision equipment jogging; pressing the button fully down engages the second stage to activate high-speed travel, allowing for smooth acceleration and highly accurate load spotting.
- Fully tested and certified to comply with strict CSA C22.2 No 14, UL 508, and EN/IEC 60947-5-1 safety standards, this pendant station carries authentic cULus and CE markings. It safely operates on standard industrial control circuits up to 600V AC, ensuring your crane setups cleanly satisfy local provincial electrical field audits, Ministry of Labour protocols, and jobsite safety reviews.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, France, Sweden
Physical Attributes
- Control Station Color
- yellow
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Terminal Identifier
- (11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
- Terminals Description Iso N°1
- (13-14)NO, (13-14)NO
- Carbon Footprint Of The Distribution Phase [A4]
- 0.13665384615384615, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.16401709401709402, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00010874999999999997
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- slow-break
- Control Station Composition
- 4 push-buttons + 1 emergency stop
- Device Short Name
- XACA
- Enclosure Material
- polypropylene
- Mechanical Durability
- 1000000 cycles
- Operating Force
- 10-10 N push-button8-8 N emergency stop
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0709005EN
- Pep Verification Date
- 2024-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A fuse protection cartridge gG
- Package Weight(Lbs)
- 777.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Button Typefirst push-button 1 NO raise, slowsecond push-button 1 NO lower, slowfourth push-button 1 NO left, slowthird push-button 1 NO right, slow, stop push-button Ø 40 mm 1 NC latching
Certificate AgencyGOST, CCC
Terminals Description Iso N°2(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.4179529914529914
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.155982905982905
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Cable Entryrubber sleeve with stepped entry 8-26 mm
Control Station Applicationcontrol of single speed hoist motor
Control Station Typedouble insulated
Electrical Circuit Typecontrol circuit
Enclosure Typecomplete ready for use
Mechanical Interlockingwith mechanical interlocking between pairs
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typependant control station
Range Of ProductHarmony XAC
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingYes
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Control Station Coloryellow
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %32
[Ui] Rated Insulation Voltage600 V 3)
Connections - Terminalsscrew clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.874715587606837
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ZB2BE101 for each directionZB2BE102 for emergency stop
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000234
ETIM 9EC000234
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
