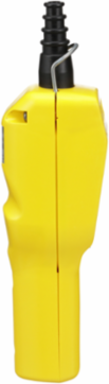

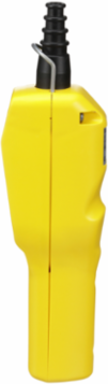

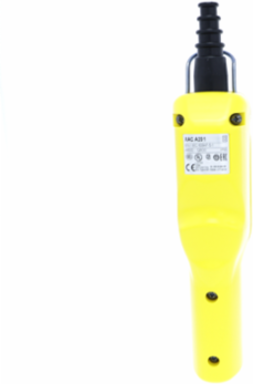

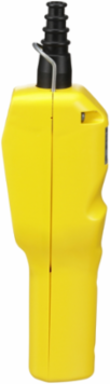

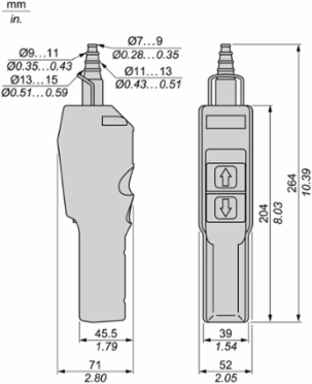

Schneider Electric XACA201 Harmony XAC Pendant Control Station, Pistol Grip, Yellow, 2 Push Buttons, IP65
- MPN: XACA201
- PPN: SCH-XACA201
CAD
$144.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The XACA201 features a specialized "pistol grip" shape engineered specifically for single-handed overhead crane and hoist control. This intuitive geometry reduces operator fatigue during long shifts, allowing for precise spotting and lifting maneuvers without the awkward hand positioning required by standard rectangular pendant boxes.
- Constructed from high-visibility yellow polypropylene, this enclosure is double-insulated and built to withstand severe mechanical impacts and vibration. The rugged housing protects internal contact blocks from the "bruising" typical of industrial environments, ensuring your lifting equipment stays operational even after accidental collisions with racking or machinery.
- This pendant station is fully sealed against dust, powerful water jets, and corrosion, making it ideal for marine, wastewater, or food processing applications. The watertight integrity prevents internal short circuits and terminal oxidation, significantly reducing maintenance intervals for equipment exposed to moisture or weather.
- Designed with an integrated cable entry and internal clamping mechanism, the station effectively transfers the weight of the cord away from the electrical terminations. This prevents wires from pulling out of their terminals over time, ensuring a reliable electrical path and preventing intermittent control failures during critical heavy-lift operations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Physical Attributes
- Control Station Color
- yellow
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Certificate Agency
- CSA, UL
- Terminals Description Iso N°1
- (13-14)NO, (13-14)NO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.2365804196
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.2968601399
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Cable Entry
- rubber sleeve with stepped entry 7-15 mm
- Control Button Type
- first push-button 1 NO raise, slowsecond push-button 1 NO lower, slow
- Control Station Composition
- 2 push-buttons
- Control Type
- intuitive
- Electrical Circuit Type
- control circuit
- Enclosure Type
- complete ready for use
- Mechanical Interlocking
- with mechanical interlocking
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
- Shock Resistance
- 100 gn IEC 60068-2-27
- Sustainable Packaging
- No
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Control Station Color
- yellow
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Czech Republic
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Recyclability Potential In %
- 32
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Short-circuit Protection
- 10 A fuse protection cartridge gG
- Package Weight(Lbs)
- 252.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Terminal Identifier(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Carbon Footprint Of The Distribution Phase [A4]0.0547909091, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0013057972, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationslow-break

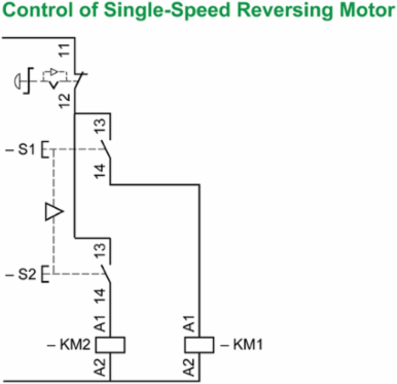

Control Station Applicationcontrol of single speed hoist motor
Control Station Typedouble insulated
Device Short NameXACA pistol grip
Enclosure Materialpolypropylene
Mechanical Durability1000000 cycles
Operating Force13-15 N
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0709005EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.5895372657
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ZB2BE101 for each direction
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000234
ETIM 9EC000234
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
