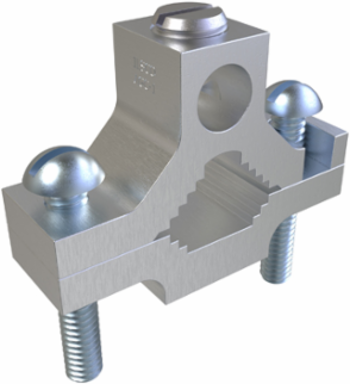

ILSCO AGC-1 Permaground Aluminum Ground Clamp, Dual Rated, Conductor Range 1/0-14, Pipe Sizes 1/2 to 1in, Rebar Sizes #4-#6, UL
- MPN: AGC-1
- UPC: 783669000603
- PPN: ILC-AGC-1
CAD
$10.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Aluminum Ground Clamp, Dual Rated, Conductor Range 1/0-14, Pipe Sizes 1/2 to 1in, Rebar Sizes #4-#6, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.611 in | 40.9194 mm
- Weight
- 0.05 lbs
Length2.25 in
Width0.688 in | 17.4752 mm
Dimensions
- Drive Type Main
- Slotted
- Height (mm)
- 40.9194
- Width BX (IN)
- 6
Height BX (IN)2.75
Weight BX (LB)3.955
Width (mm)17.4752
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Connection
- Mechanical
- Number of Ports / Wireways
- 1
Number of Conductors1
Wire OrientationParallel
Material and Finish
- Clamping Hardware Finish
- Zinc Clear Trivalent Chromate
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Clamping Hardware MaterialSteel
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- NPS/IPS Pipe Size
- 1/2, 1, 3/4
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Rebar Size(s) Main#4 (1/2), #6 (3/4), #5 (5/8)
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-573-2
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedYes
UPC Code78366900060
Bolt and Screw Sizes
- Clamping Bolt Size
- 1/4-20
Wire Binding Torque4 - 6 AWG = 45, 8 AWG = 40, 10 - 14 AWG = 35, 2/0 - 2 AWG = 50
