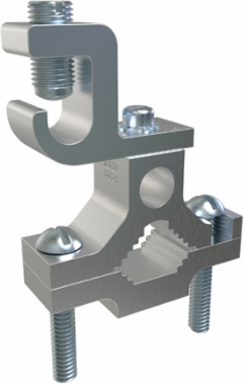

ILSCO SGC-1/0 Permaground Aluminum Ground Clamp, Dual Rated, Conductor Range 1/0-14, Pipe Sizes 1/2 to 1in, UL
- MPN: SGC-1/0
- UPC: 783669814507
- PPN: ILC-SGC-1/0
CAD
$12.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Aluminum Ground Clamp, Dual Rated, Conductor Range 1/0-14, Pipe Sizes 1/2 to 1in, UL
Documentation & Downloads
Specifications
Key Specifications
| Height | 3.254 in | 82.6516 mm |
|---|---|
| Weight | 0.27 lbs |
| Length | 2.315 in | 58.801 mm |
|---|---|
| Width | 0.688 in | 17.4752 mm |
Dimensions
| Drive Type Main | Slotted |
|---|---|
| Height (mm) | 82.6516 |
| Weight BX (LB) | 7.0169 |
| Width (mm) | 17.4752 |
| Height BX (IN) | 2.75 |
|---|---|
| Length (mm) | 58.801 |
| Width BX (IN) | 6 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL / CULUS Specification | UL 467 Listed |
| UL Control Number | 667P |
|---|---|
| UL File Number | E34440 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Ports / Wireways | 1 |
| Number of Conductors | 1 |
|---|---|
| Wire Orientation | Perpendicular, Parallel |
Material and Finish
| Clamping Hardware Finish | Zinc Clear Trivalent Chromate |
|---|---|
| Conductor Material | Aluminum, Copper |
| Material | Aluminum |
| Wire Binding Hardware Material | Steel |
| Clamping Hardware Material | Steel |
|---|---|
| Connector Finish | Clear |
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
| NPS/IPS Pipe Size | 1, 3/4, 1/2 |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-573-2 |
| Carton Quantity Description | STD PACK QTY 25 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366981450 |
Bolt and Screw Sizes
| Clamping Bolt Size | 1/4-20 |
|---|---|
| Number of Wire Binding Screws per Port | 1 |
| Wire Binding Torque | 1/0 - 6 AWG = 45, 8 AWG = 40, 10 - 14 AWG = 35 |
| Clamping Bolt Size (mm) | 36068 |
|---|---|
| Wire Binding Screw Size | #10 |
