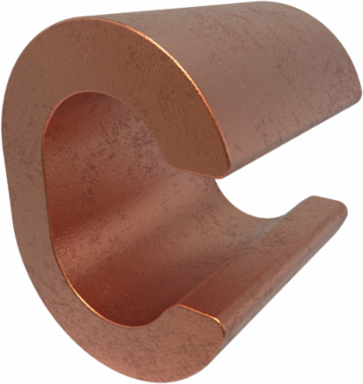

ILSCO ULT-1-Z Permaground Copper Grounding C Crimp, Main Conductor Range 10-12 Sol, Tap Range 10-12 Sol, CSA
- MPN: ULT-1-Z
- UPC: 783669930726
- PPN: ILC-ULT-1-Z
CAD
$8.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding C Crimp, Main Conductor Range 10-12 Sol, Tap Range 10-12 Sol, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.366 in | 9.2964 mm |
|---|---|
| Weight | 0.005 lbs |
| Length | 0.279 in | 7.0866 mm |
|---|---|
| Width | 0.32 in | 8.128 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Height BX (IN) | 2.25 |
|---|---|
| Length (mm) | 7.0866 |
| Width BX (IN) | 5 |
| Height (mm) | 9.2964 |
|---|---|
| Weight BX (LB) | 0.59 |
| Width (mm) | 8.128 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
Additional Class Attributes
| ILSCOs Die Catalog Number | ILD-238 |
|---|
| ILSCOs Die Index Number | 238 |
|---|
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Bare |
|---|
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 12 Sol |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 10 Str - 12 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 10 Sol - 12 Sol |
|---|---|
| Conductor Range CU Stranded (Secondary, tap, load) | 10 Str - 12 Str |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-1 |
| Carton Quantity Description | STD PACK QTY 100 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366993072 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
