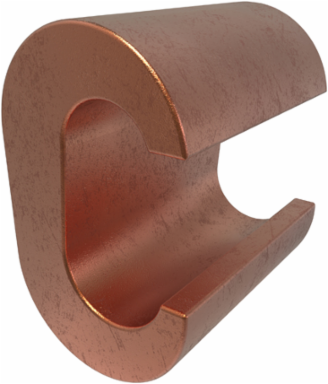

ILSCO ULT-6-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 4-8 Sol, UL, CSA
- MPN: ULT-6-Z
- UPC: 783669930795
- PPN: ILC-ULT-6-Z
CAD
$17.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 4-8 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.83 in
- Weight
- 0.084 lbs
Length0.99 in
Width0.614 in | 15.5956 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Weight BX (LB)8.547
Width (mm)15.5956
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Barrel Marking
- Hard
ILSCOs Die Index NumberND-C
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 2 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str
Conductor Range CU Solid (Secondary, tap, load)4 Sol - 8 Sol
Conductor Range CU Stranded (Secondary, tap, load)4 Str - 8 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-1
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366993079
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
