ILSCO

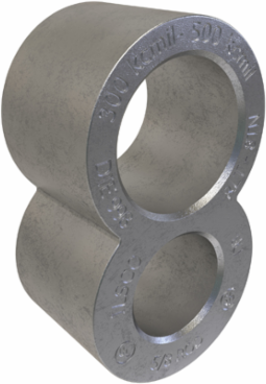

ILSCO RLT-8TN Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 5/8in, UL, CSA

  • MPN: RLT-8TN
  • UPC: 783669715774
  • PPN: ILC-RLT-8TN

CAD

$93.99

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 5/8in, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height2.142 in | 54.4068 mm
Weight0.368585743298328 lbs
Length1.234 in | 31.3436 mm
Width0.875 in | 22.225 mm

Dimensions

Height BX (IN)0
Length (mm)31.3436
Width BX (IN)0
Height (mm)54.4068
Weight BX (LB)7.38
Width (mm)22.225

Testing Standards

CSA File NumberLR-5465
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed
CSA StandardC22.2 No. 41
UL Control Number667P
UL File NumberE34440

Additional Class Attributes

Barrel MarkingHard
ILSCOs Die Index Number1011, 998
ILSCOs Die Catalog NumberILD-998

Material and Finish

Conductor MaterialCopper
MaterialCopper
Connector FinishTin

Conductor Ranges

Conductor Range CU Stranded (Primary, run, main, line)500 kcmil - 300 kcmil
Ground Rod Size5/8
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 300 kcmil

Additional Technical Specifications

Conductor TypeStranded

General

Bag Quantity1
Direct BurialYes
NEMA CodeS-573-3
Carton Quantity DescriptionSTD PACK QTY 20
Dual RatedNo
UPC Code78366971577

Color

ColorSilver
Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 5/8in, UL, CSA
