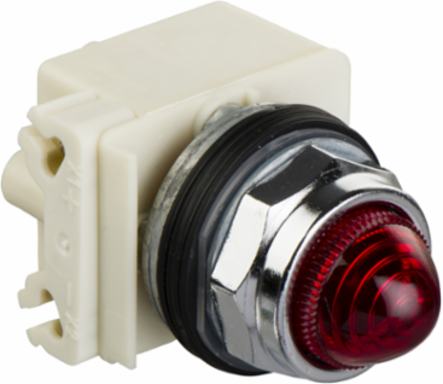

Square D 9001KP38LRR6 Harmony LED Pilot Light, 30mm, Red, IP66, 120V
- MPN: 9001KP38LRR6
- UPC: 785901126096
- PPN: SCH-9001KP38LRR6
CAD
$235.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, red pilot light with integral LED and glass dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Device Short Name
- 9001K
Product Or Component Typepilot light
Complementary
- [Us] Rated Supply Voltage
- 120 V
- [Us] Rated Supply Voltage
- 120 V AC/DC
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Bezel Material
- metal
- Light Source Colour
- red
- Light Block Supply
- direct 120 V AC/DC
- Operating Position
- any position
- Shape Of Signaling Unit Head
- round
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Lens Type
- domed glass
- Cad Overall Depth
- 42 mm
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Cad Overall Height
- 70 mm
- Device Presentation
- complete product
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Light Sourcered LED
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Lens Materialglass
Light SourceLED
Mounting Diameter30 mm
[Ith] Conventional Free Air Thermal Current10 A
Cap/Operator Or Lens Colourred
Cad Overall Width54 mm
Shape Of Screw Headcross slotted
Net Weight0.134 kg
Size30 mm
Bulb BaseBA 9s
Lens Typedomed
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-4 || JIS C8201-1
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 61140
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
