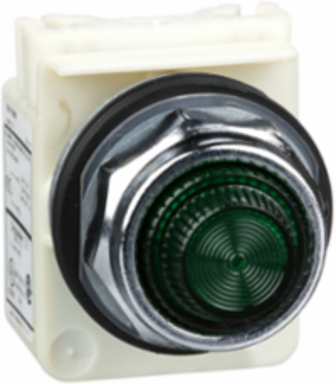

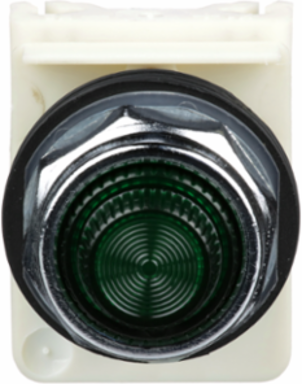

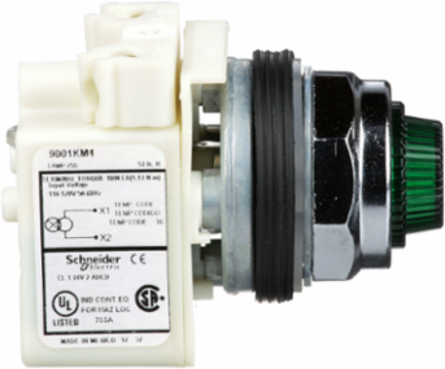

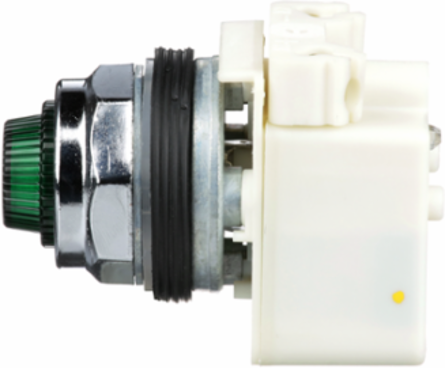

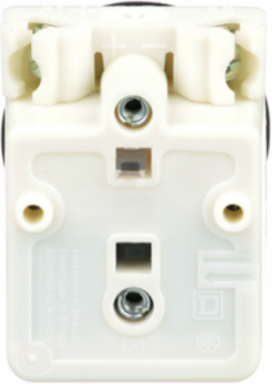

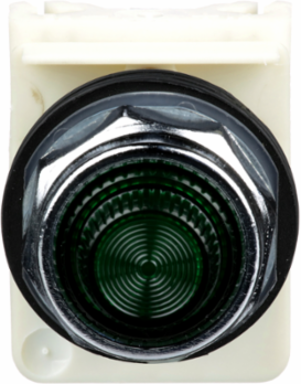

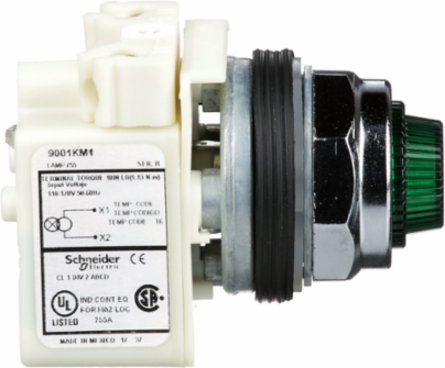

Schneider Electric 9001KP1G31 Harmony 9001K Green Pilot Light, 30 mm, 110...120V, Metal Bezel, IP66
- MPN: 9001KP1G31
- UPC: 785901094487
- PPN: SCH-9001KP1G31
CAD
$198.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony 9001K Green Pilot Light, 30 mm, 110...120V, Metal Bezel, IP66
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Lens Type
- fresnel, fresnel plastic
- Light Source
- incandescent bulb, incandescent
- [Us] Rated Supply Voltage
- 110...120 V, 110...120 V AC
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- metal
- Device Short Name
- K
- Mounting Diameter
- 30 mm
- Operating Position
- any position
- Product Or Component Type
- pilot light
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour
- green
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Light Block Supplyvia transformer 120 V AC 50/60 Hz, via integral transformer 110 V AC 50/60 Hz, via integral transformer
Certificate AgencyCSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR, CE
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Bulb BaseBA 9s
Lens Materialpolycarbonate
Operating Modenormal
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001K
Shape Of Screw Headround
Sustainable PackagingYes
Pep CodeENVPEP2503027EN
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Package Weight(Lbs)229.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/6/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP65/IP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- pilot light
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
