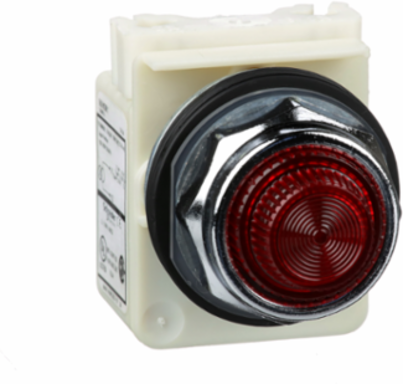

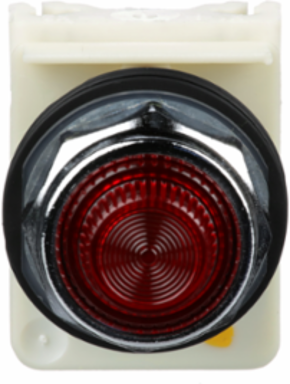

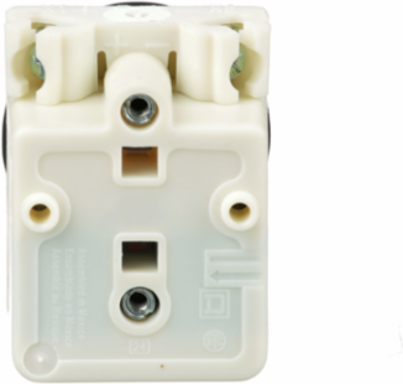

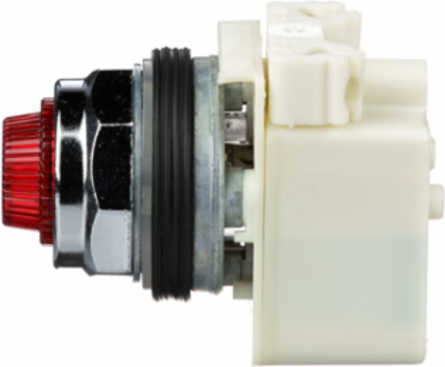

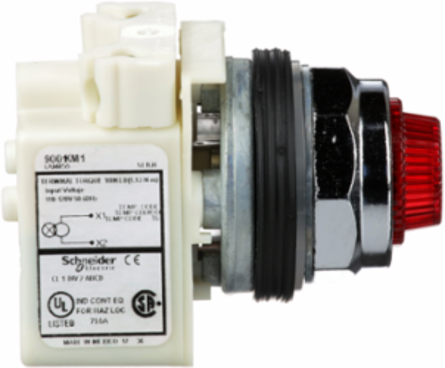

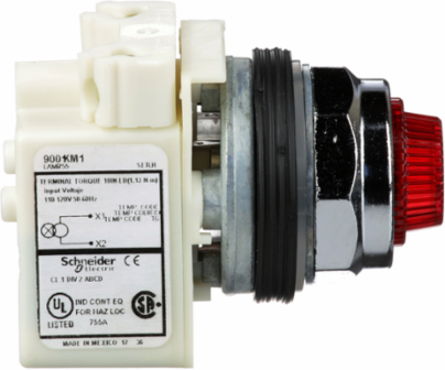

Schneider Electric 9001KP1R31 Harmony 9001K Red Pilot Light, 30 mm, 110-120V AC, Metal Bezel, IP66

MPN: 9001KP1R31
UPC: 785901094579
PPN: SCH-9001KP1R31

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$198.11

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 9001K Red Pilot Light, 30 mm, 110-120V AC, Metal Bezel, IP66

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Light Block Supply	via transformer 120 V AC 50/60 Hz 110 V AC 50/60 Hz, via integral transformer
Certificate Agency	UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03, CE
Local Publishable Date	2026-03-25
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	metal
Device Short Name	K
Lens Type	fresnelfresnel plastic
Operating Mode	normal
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony 9001K
Shape Of Screw Head	round
Sustainable Packaging	Yes
Pep Code	ENVPEP2503027EN
Cap/Operator Or Lens Colour	red
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Light Source	bulb, incandescent
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	BA 9s
Lens Material	polycarbonate
Mounting Diameter	30 mm
Operating Position	any position
Product Or Component Type	pilot light
Returnability	Yes
Supply Frequency	50...60 Hz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage	110...120 V110...120 V AC
Connections - Terminals	screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Package Weight(Lbs)	222.300 g
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 3R/6/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP65/IP66
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
