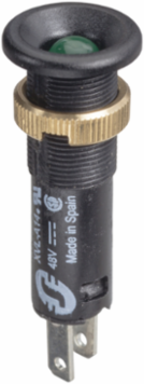

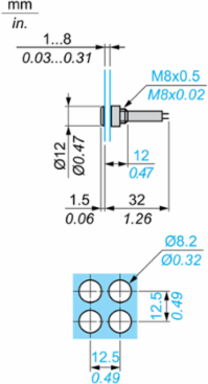

Schneider Electric XVLA133 Harmony XVL 8mm Green LED Pilot Light, 24V DC, IP40, Faston Connectors
- MPN: XVLA133
- PPN: SCH-XVLA133
CAD
$10.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XVLA133 is a green pilot light diameter 8mm. Its degree of protection is IP40. It has protruding LED included, 24V, faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, United States
Depth34 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Overvoltage Category
- class 3 conforming to IEC 60536, class 3 conforming to NF C 20-030
- Certificate Agency
- CSA, UL
- Terminals Description Iso N°1
- (X1-X2)PL, (X1-X2)PL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0044653974
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.019255062
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Component Name
- XVL
- Light Source
- protruding LED
- Nominal Voltage Limit
- 0.8...1.1 Un
- Product Or Component Type
- LED pilot light with black bezel
- Range Of Product
- Harmony XVL
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XVLA Pilot light degree of protection is IP40/IP65 (with seal). It has covered LED included 24V, lugs connection.This pilot light power consumption is 0.432W with 71% active mode for 10 years and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential, In %
- 19
- Width Nominal
- 12 mm
- [Us] Rated Supply Voltage
- 24 V
- Package Weight(Lbs)
- 3.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Protection Typeintegral ballast resistor, built-in by diode
Connections - Terminalstag for Faston connectors 2.8 x 0.5 mm, tag for soldering connectors
Carbon Footprint Of The Distribution Phase [A4]0.0003922937, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000988879, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]11 kg CO2 eq., 11.3799995765
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bulb Lifespan100000 h
Current Consumption18 mA
Mounting Diameter8 mm
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Supply Circuit TypeDC
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Pep CodeENVPEP2312029EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Height Nominal12 mm
[Ui] Rated Insulation Voltage50 V IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP40 IEC 60529, IP40 NF C 20-010
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2312029EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2312029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint11.4042112174
Environmental DisclosureENVPEP2312029EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- LED pilot light with black bezel
Range Of ProductHarmony XVL
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
