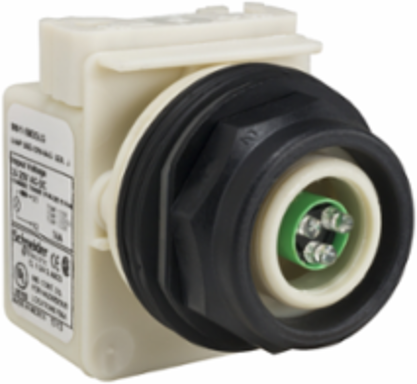

Square D 9001SKP35LG Harmony Pilot Light Head, 30 mm, Green LED, 24-28V
- MPN: 9001SKP35LG
- UPC: 785901750871
- PPN: SCH-9001SKP35LG
CAD
$159.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for seamless integration into control systems, the Harmony Pilot Light Head from Schneider Electric features a striking green LED that serves as a visible indicator for effective monitoring. Designed to operate within a voltage range of 24 to 28V, this 30 mm pilot light head ensures reliable performance in various industrial settings, making it an essential component for automation and control applications. Its robust design not only enhances visibility, but also contributes to the overall efficiency of your operational processes.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24...28 V AC/DC
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Ambient Air Temperature for Storage
- -40 to 70 °C
- Rated Insulation Voltage
- 250 V EN/IEC 60947-1
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Size
- 30 mm
- Overall Width
- 54 mm
- Overall Depth
- 42 mm
- Connection Terminals
- Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Shape of Screw Head
- Cross slotted
- Bezel Material
- Plastic
- Electrical Shock Protection Class
- Class II IEC 61140
- IP Degree of Protection
- IP66 IEC 60529
- Standards Compliance
- EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C 852, CSA C22.2 No 14, UL 508, JIS C8201-5-1, EN/IEC 60947-5-4, JIS C8201-1
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of SVHC above threshold
- Country of Origin
- Mexico
Conventional Thermal Current10 A
Ambient Air Temperature for Operation-25 to 70 °C
Tightening Torque0.8 N·m EN/IEC 60947-1
Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Shock Resistance50 gn IEC 60068-2-27
Mounting Diameter30 mm
Overall Height70 mm
Bulb BaseBA 9s
Shape of Signaling Unit HeadRound
Cap ColourWithout cap
Light SourceGreen LED
Protective TreatmentTC
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Product CertificationsUL 508, NEMA
Mercury FreeYes
RoHS CompliancePro-active compliance (out of EU RoHS legal scope)
