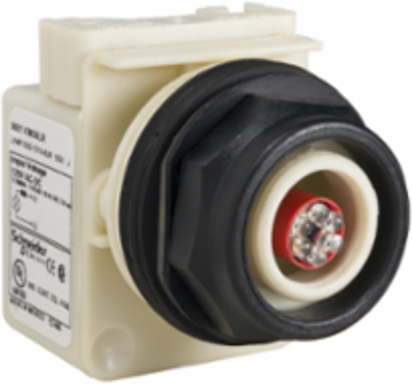

Square D 9001SKP35LR Harmony Pilot Light Head, 30mm, Red LED, 24-28V, IP66
- MPN: 9001SKP35LR
- UPC: 785901743781
- PPN: SCH-9001SKP35LR
CAD
$159.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for superior visibility and performance, this red LED pilot light head from Schneider Electric is a vital component in automation and control applications. With a 30mm size and designed for voltages between 24-28V, it delivers reliable signaling in a variety of environments. Its robust construction ensures an IP66 rating, making it resistant to dust and water, which enhances durability and extends its operational lifespan. Ideal for use in diverse industrial settings, this pilot light head seamlessly integrates into control panels, providing operators with clear, intuitive indications of system status.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24...28 V AC/DC
- Conventional Free Air Thermal Current
- 10 A
- Rated Insulation Voltage
- 250 V IEC 60947-1
- Operating Position
- any position
- Mounting Diameter
- 30 mm
- CAD Overall Height
- 70 mm
- Net Weight
- 0.181 kg
- Bezel Material
- plastic
- Bulb Base
- BA 9s
- Electrical Shock Protection Class
- class II IEC 61140
- IP Degree Of Protection
- IP66 IEC 60529
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Ambient Air Temperature For Operation
- -25 to 70 °C
- Standards / Compliance
- IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C8201-5-1, UL 508, JIS C 852, JIS C8201-1
- Country of Origin
- Mexico
Light Sourcered LED
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Size30 mm
CAD Overall Width54 mm
CAD Overall Depth42 mm
Shape Of Signaling Unit Headround
Shape Of Screw Headcross slotted
Tightening Torque0.8 N.m IEC 60947-1
Protective TreatmentTC
NEMA Degree Of ProtectionNEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Shock Resistance50 gn IEC 60068-2-27
Ambient Air Temperature For Storage-40 to 70 °C
Product CertificationsUL 508, NEMA
