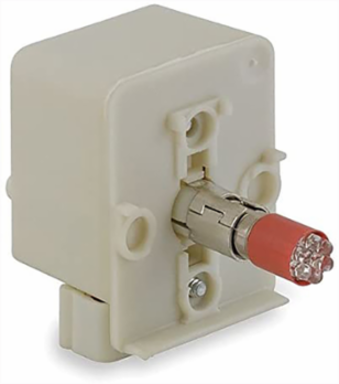

Square D 9001KM3LR 30mm Push Button, Types K, SK or KX, light module, red LED lamp, 208/220 VAC 50/60 Hz
- MPN: 9001KM3LR
- UPC: 785901401971
- PPN: SCH-9001KM3LR
CAD
$218.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This transformer light module is designed for 208/220 VAC 50/60 Hz circuits. Light modules have either an incandescent or an LED lamp. This light module has a red LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or red lens cap. These light modules are UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Customizable
- 1, no
- Range Of Product
- Harmony 9001K, Harmony 9001SK
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- 9001K
- Light Block Supply
- direct via integral transformer
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2503027EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531809026
Product Or Component Typelight module, light block
Certificate AgencyUL Listed, CSA, NEMA
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bulb BaseBA 9s
Electrical Shock Protection Classclass II conforming to IEC 61140
Light SourceLED (bulb included)
Protective TreatmentTC
Shock Resistance50 gn IEC 60068-2-27
Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage208...220 V AC 50...60 Hz
Package Weight(Lbs)113.398 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -13-158 °F, -25-70 °C, -13-158 °F
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP10 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- light module, light block
Range Of ProductHarmony 9001K, Harmony 9001SK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
