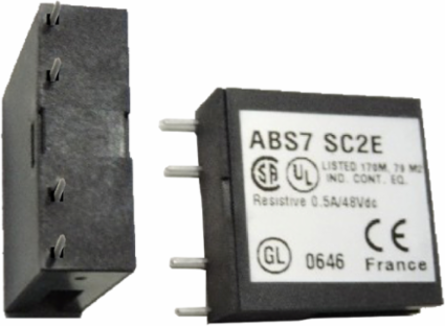

Schneider Electric ABS7SC2E Plug-in Solid State Relay 10 mm 5-48 V DC 0.5 A Output Relay
- MPN: ABS7SC2E
- PPN: SCH-ABS7SC2E
CAD
$23.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 5VDC to 48VDC prewired sub-bases. Its response time is less than 0.1ms from state 0 to 1 and less than 0.6ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 10mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7P16T214, ABE7P16T215, ABE7P16T212, and ABE7P16T210 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Latvia, United States
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Response Time
- <= 0.1 ms from state 0 to 1, <= 0.1 ms from state 0 to 1, <= 0.6 ms from state 1 to 0, <= 0.6 ms from state 1 to 0<= 0.1 ms from state 0 to 1, <= 0.1 ms from state 0 to 1, <= 0.6 ms from state 1 to 0, <= 0.6 ms from state 1 to 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 36.93
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current State 1 Guaranteed
- 2.9 mA DC
- Product Or Component Type
- plug-in solid state relay
- Range Of Product
- Advantys Telefast ABE7
- Returnability
- No
- Voltage State 0 Guaranteed
- 3.8 V DC
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1409004EN
- Package Weight(Lbs)
- 6.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Data StatusPublishable
Return IndicatorN
Future Msrp52.36
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1846
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Current State 0 Guaranteed0.4 mA DC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 4
Relay Typeoutput relay
Sustainable PackagingNo
Voltage State 1 Guaranteed18.6 V DC
Width Pitch Dimension10 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- ABE7P16T214, ABE7P16T215, ABE7P16T212, ABE7P16T210
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1409004EN
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP1409004EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in solid state relay
Range Of ProductAdvantys Telefast ABE7
ETIM
- ETIM 8
- EC001652
ETIM 9EC001652
Output Attributes
- Discrete Output Current
- 500 mA
Discrete Output Voltage5...48 V DC
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Voltage
- 24 V DC
